Product description

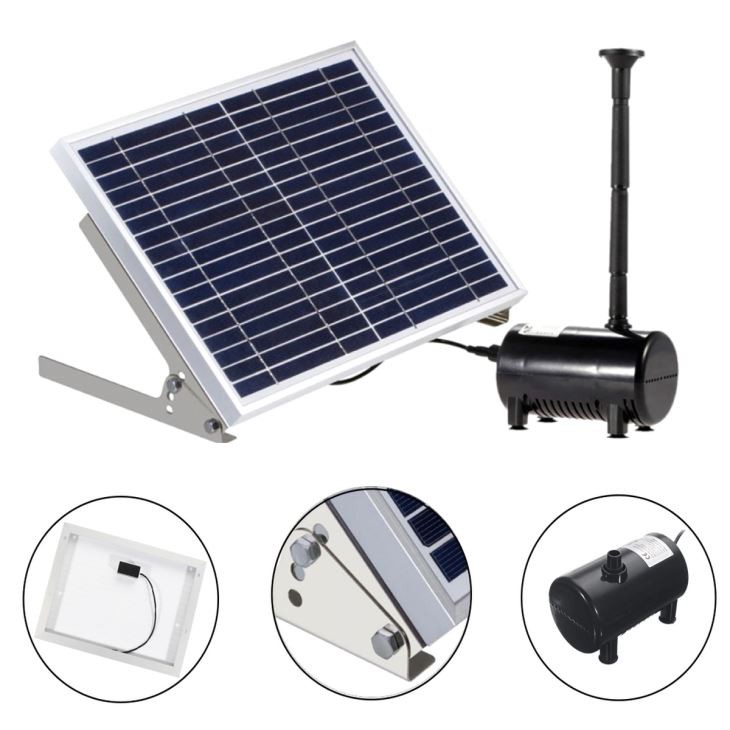

Solar water pump consists of solar panel system, PV water pump controller system and pump.

1. Solar panel system: Solar panels are in series and parallel connection; Convert the solar irradiance into electricity to supply power for pump system.
2. Photovoltaic water pump controller system: It regulates all the pump system, turning instable DC voltage of solar panel system into stable DC voltage for pump, and regulates the output current in according with sunshine intensity to achieve maximum power point tracking(MPPT), maximizing the use of solar energy.
3. Solar pump system: It consists of pump body, motor, water pipe, cable, protection devices, water level sensor.

Application:

The solar pumps can automatically work in the day, while the sunshine is lower. So it is suitable for irrigation, garden, fountains, family, pastoral grasslands, mountain, especially working in the areas without electricity supply.

Products feature:

1. Water pump controller system has complete electrical protecting device, against under-voltage, over-voltage, over-flow, overload, waterless, etc;
Also with an automatic switch and water level sensor that can on/off the pump when the well is dry and the water tank is fully.

2. Pump head: 19-190m, Flow rate: 1.6-31M3/h.

3. Working temperature: -20-50 degree C

Service life:

Solar panel: 20-25years;
Pump comtroller: 10years
Water pump: 30, 000hours.

Components list

320W Solar Panel Powered 240W DC Water Pump
System Basic Information	Solar DC pump: 120w+120w System working time: sunsine time		QTY
Solar panel	Type: mono solar panel(poly optional) Max power : 160w Vmp:18.4V;Voc:23V Imp 8.75 A ; Isc 9.35A Front glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90% 2 pcs in series		2 Pcs
Solar DC pump	1)model:10L-120W Pump capacity:120W/24VDC Water flow: 10L/min Lift distance: 80M Diameter of Pump:450*76mm Rotation speed:18000rpm Protection class:IP68 Pump materials: plastic head	2)model:45L-120W Pump capacity:120W/24VDC Water flow:50L/minI Lift distance:10M Diameter of Pump:530*76mm Rotation speed:18000rpm Protection class:IP68 Pump materials: brass head	2 Unit
Pump controller	Rated Power: 150w, 12V / 24V MPPT controller: 0-200V MPPT effeiceny: 99.5% Protection: Reliable thunderstorm& surge protection		2 Unit
Solar panel ground rack	Ground rack installation Wind load: 55m/s; Snow load:1.5kN/m2 Structure: Anodized Aluminum+stainless steel,Angle adjustable (other type of rack canbe customized as per client's requirement)		1 Unit
Cables	From solar panel to inverter: 4mm2 PV cable:50M From inverter to pump: 3*2.5mm2 AC cable:50M		1 Unit
Working time: During sunshime time
