【Product description】

Solar powered water pump systems utilise solar photovoltaic (pv) panels to power electric pumps for the movement of water. Applications for solar water pumps range from small scale at the residential level to large scale in agricultural use. Specifically, these systems can be used for domestic water supply, swimming pool/spa filtration, regional community water supply, aquaculture, crop irrigation and livestock watering among other things.

The system is composed of a PV generator, a pump and a solar pump drive.

Benefits

• Pumping of water in for irrigation for drinking water supply in off grid areas, easy installation.

• Farmer can cultivate multiple crops through out the year in off grid areas

• Farmer can save their time spent in collecting and transporting water.

• Lower operation expense compared to diesel pumps

• Zero emission of green house gases.

• Reduced load on national grid.

【Components list】

Typical configuration in Southeast Asia

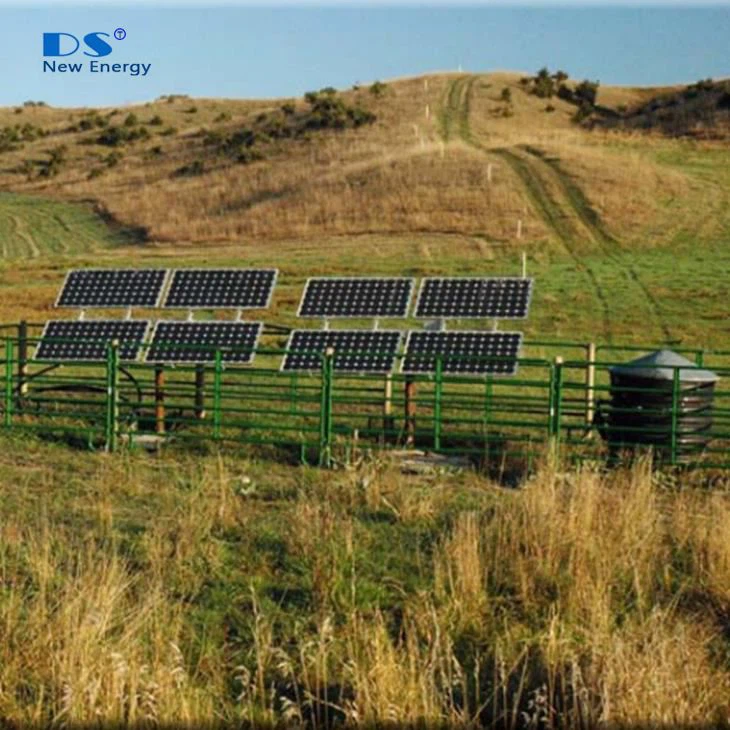

1.2KW Solar Panel Powered 750KW AC Water Pump
System Basic Information	Solar AC pump: 750W System working time:sunsine time	QTY
Solar panel	Type: mono solar panel(poly optional) Max power : 50w Vmp:18V ; Voc:23V; Imp 2.8A ; Front glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80%, 20 year 85%, 10 years 90% 25 pcs in series	25 Pcs
Solar AC pump	Pump capacity: 750w, 3-phase 380v Flow: Lift distance 19m，Water flow 7m3/h	1 Piece
Pump inverter	Rated Power: 1.1kw, 3-phase 380v MPPT controller: 450V-700V MPPT effeiceny: 99.5% Protection: Reliable thunderstorm& surge protection	1 Unit
Solar panel ground rack	Ground rack installation Wind load: 55m/s; Snow load:1.5kn/m2 Structure: Anodized Aluminum+stainless steel,Angle adjustable (other type of rack canbe customized as per client's requirement)	1 Unit
Cables	From solar panel to inverter: 4mm2 PV cable:100M From inverter to pump: 3*2.5mm2 AC cable:100M	1 Unit
Working time: During sunshime time
