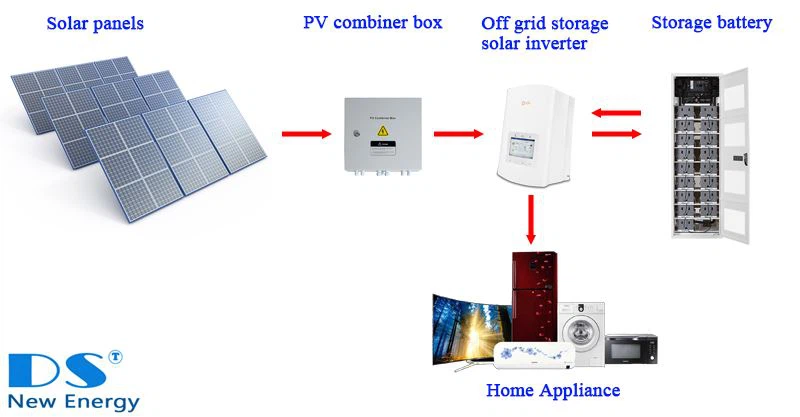

【Diagram】Off grid solar system
【Solution and components】
Item | Model | Description | Quantity |
1 | Solar Panel | TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W | 10 pieces |
2 | PV Combiner Box | 6 inputs 1 output | 1 piece |
3 | Off grid storage inverter | 5kW, AC 110V/120V/208V/220V/380V/, 50/60hz | 1 piece |
4 | GEL battery Lithium-ion battery (available) | 12v 250Ah 48V 100Ah(available) | 4 pieces 2 pieces (available) |
5 | Mounting Support | Pitched / flat roof, ground | 1 set |
6 | Cable | Single-core 4mm2 and 10mm2 PV cable | 200 meters |
7 | Connector | MC4 connector | 10 pairs |
8 | Tools Bag | 5 kinds of PV installation tools | 1 bag |
【Product description】
Rigorously tested, the TOPCon solar panel 580W is designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa. Dual mppt tracking inverter, secure power production.
The 5kw solar power system generates average 8000 kWh of Electricity per year installed at good irradiance site.
The system is popular with remote habitations such as solar home systems and water pumping applications alongside with industrial applications such as telecommunications and traffic signs.
