Quick Details
Condition: New | Brand Name: DS New Energy |
Place of Origin: Zhejiang, China (Mainland) | Application: Room |
Power Source: Solar | Type: Split Wall Mounted Solar Air Conditioner |
Cooling/Heating: Cooling/Heating | Certification: CE, SGS, ISO9001:2015 |
Cooling Capacity (btu): 12000 | EER / COP: 5.58 / 5.66 |
Voltage (V): 48 | Model Number: GTP-12 |
Cooling Capacity: 3500W/12000BTU/H | Heating Capacity: 3700W/13000BTU/H |
Cooling Rated Input Power: 627W | Heating Rated Input Power: 653W |
Cooling Rated Input Current: 13.06A | Heating Rated Input Current: 13.60A |
Air Circulation: 580m3/h | Liquid Quantity(R410A): 1.05kg |
Indoor unit Gross Weight: 14.8kg Shipping Dimension: 905*370*283mm | Outdoor unit Gross Weight/Dimension:40kg Shipping Dimension 890*360*590mm |
Product Description
Using solar to power your air conditioner. You don’t have to be a casualty of high electricity bills this summer or the next. Solar energy is an effective way to generate renewable energy for your air conditioner to use, while also providing power to the rest of your appliances. Solar panel systems will generate thousands in electricity savings for over 25 years, and outlast your air conditioner plus all the other appliances they power.
The 100% DC48V Solar Air Conditioner which uses no electricity effectively reducing operating costs by up too 100% during the day and night.
The 100% Off Grid Unit uses a combination of Solar Power and Battery Storage.
All 100% Off Grid 48V DC Inverters are manufactured to strict standards and have an internationally recognised quality assurance system in place.
Product show
Overview
The DC48V 100% solar air conditioner is an independent off-grid solar powered air conditioner system that uses its own solar panels for independent operation of a DC48V air conditioning equipment. Applicable to areas that are often interrupted when there is no power supply or power short supply.
Key features
• 100% solar energy, powered by solar panels.
• DC48V compressors and motors, no inverters required.
• Independent solar air conditioning system, no public grid required.
• Reconfigure the number of solar panels and accumulators to meet individualized customization requirements (such as working period and hours).
Structure

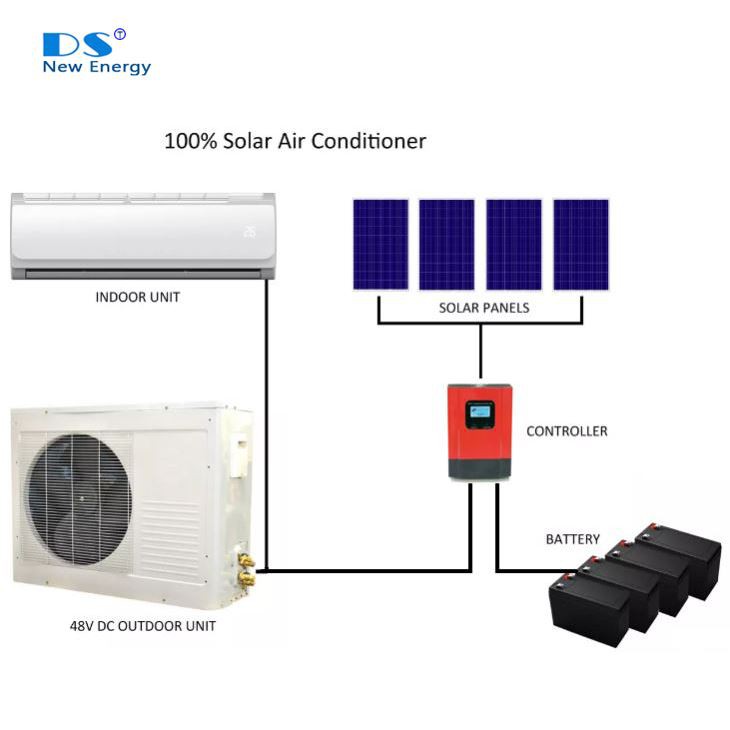

100% solar air conditioner is mainly composed of indoor unit, outdoor unit, solar panel, solar controller, battery, PV cables and brackets:
Working Principle
• In a 100% solar air conditioning system, solar panels convert light energy into electrical energy and provide 48V DC voltage for the air conditioning system to operate.
• When the air conditioner is working under sunshine, the electricity generated by the solar panel will be directly used by the air conditioning system.
• When air conditioning is not working under sunshine, the electricity generated by the solar panels will be stored in the battery for use in air conditioning operation.
System infortion
DC 48V 100% Solar Air Conditioner | ||||
5 hours illumination and 10 hours air conditioner a day | ||||
Solar Air Conditioner | 9000btu | 12000btu | 18000btu | 24000btu |
Gel Battery | 4pcs 12V100AH | 4pcs 12V100AH | 4pcs 12V200AH | 4pcs 12V200AH |
The Battery In Series Operation | ||||
Solar PV Panel | 4pcs 36V250W | 4pcs 36V250W | 8pcs 36V250W | 8pcs 36V250W |
2pcs panels in series,2groups in parallel | 2pcs panels in series,4groups in parallel | |||
48V controller | 30A | 30A | 40A | 40A |
Air conditioner technical data
Model | GTP-09 | GTP-12 | GTP-18 | GTP-24 | |
Voltage | DC48V | ||||
Cooling Capacity | 2600W 9000BTU/H | 3500W 12000BTU/H | 5000W 18000BTU/H | 7000W 24000BTU/H | |
Heating Capacity(W) | 2800W 9500BTU/H | 3700W 13000BTU/H | 5000W 18000BTU/H | 7000W 24000BTU/H | |
Air Circulation (m3/h) | 500 | 580 | 900 | 1100 | |
Rated Input Power (W) | Cooling | 463 | 627 | 896 | 1268 |
Heating | 491 | 653 | 892 | 1261 | |
Rated Input Current (A) | Cooling | 9.65 | 13.06 | 18.67 | 26.42 |
Heating | 10.23 | 13.6 | 18.58 | 26.27 | |
EER/COP | 5.62/5.7 | 5.58/5.66 | 5.58/5.6 | 5.52/5.55 | |
Liquid Quantity(R410A)Kg | 0.95 | 1.05 | 1.55 | 2.3 | |
Indoor unit | Noise dB(A) | 41 | 43 | 45 | 48 |
Net Weight Gross Weight(kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | |
Outdoor unit | Noise dB(A) | 52 | 54 | 56 | 60 |
Net Weight Gross Weight(kg) | 35/40 | 35/40 | 61/66 | 65/70 | |
Indoor unit | Net Dimension(mm) | 795*285*215 | 795*285*215 | 1090*330*255 | 1090*330*255 |
Shipping Dimension (mm) | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | |
Outdoor unit | Net Dimension (mm) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 |
Shipping Dimension (mm) | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | |
Connecting Pipe Specifications(mm) | Liquid Pipe | φ6.35 | φ9.52 | ||
Gas Pipe | φ12.7 | φ16 | |||
connecting line specifications | 5*1.5mm²*3.6m | 4*1.5mm²*4.15m | |||
Power line specifications | 3*4mm² | 3*6mm² | |||
Compressor Brand | Toshiba | ||||
Details
1. 100% solar air conditioner:
• DC48V compressor, permanent magnet full DC type, 100% energy saving;
• 48V full DC inverter controller system, no inverter required, improve utilization;
• Both indoor and outdoor motors use brushless DC motors with good stability and long service life;
• High efficiency heat exchanger, more energy saving effect.
2. Solar panel:
• Long lifetime: ≥25 years; Less power decrease.
• Highest conversion efficiency of 18.3% solar cells.
• Anti-reflecting coating and high transmission rate glass and mechanical strength.
• High quality EVA and TPT to prevent destroying and water.
• Good performance of preventing from atrocious weather such as wind and hails.
3. Solar controller
• Metal Cover, beautiful, good adaptability to weather changes.
• Aluminum profile heatsink for fast heat dissipation and long service life.
• LED screen, intuitive reading information, easy to operate.
4. GEL battery
• Maintenance-free battery, safe and environmentally friendly, ture green power.
1000-1200 times of recycling, good quality, long service life.
• Strong adaptability to ambient temperature (-40°C--65°C).
• Withstand long-term discharge capacity, cycle discharge capacity, deep discharge and high current discharge capability.
• Overcharged and overdischarged self-protection.
Advantage of 100% solar air condtioner
Packaging and logistics
