【Diagram】Off grid solar system
【Solution and components】
Item | Model | Description | Quantity |
1 | Solar Panel | TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W | 20 pieces |
2 | PV Combiner Box | 4 inputs 1 output | 1 piece |
3 | Off grid storage inverter | 10kW, AC 220v-240v/100-120V, 50/60hz | 1 piece |
4 | GEL battery Lithium-ion battery (available) | 12v 250Ah 48V 100Ah(available) | 4 pieces 2 pieces (available) |

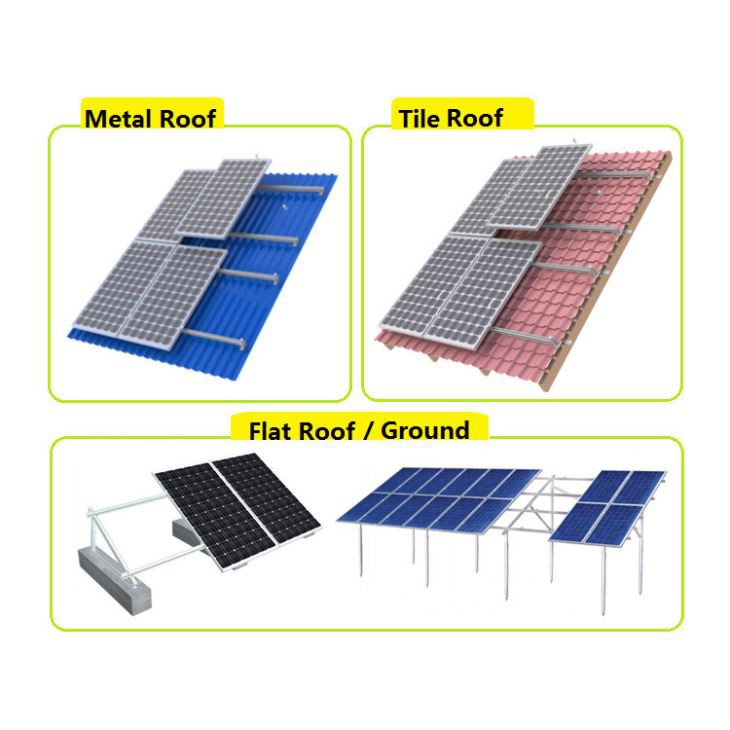

5 | Mounting Support | Pitched / flat roof, ground | 1 set |
6 | Cable | Single-core 4mm2 and 10mm2 PV cable | 400 meters |
7 | Connector | MC4 connector | 10 pairs |
8 | Tools Bag | 5 kinds of PV installation tools | 1 bag |
【Product description】
Complete kit includes everything you need to hook up solar and inverter system
20 pieces, TOPCon solar panel 580W
1 piece, 10kW EU standard or US standard Off-grid Inverter
1 piece, 6 inputs 2 outputs Combiner Box
1 piece, Charge controller 120V 100A
10pieces, Battery 12V 250AH (adjustable),
1 set, Pitched or flat roof, ground Racking structure
Cable and connectors
【Key features】
The solar power system can run your TV and other AC appliances day or night
Completely green power solution
No noise, no fuel, and no maintenance
Can be applied on your Recreational Vehicle, cottage, cabin or boat
