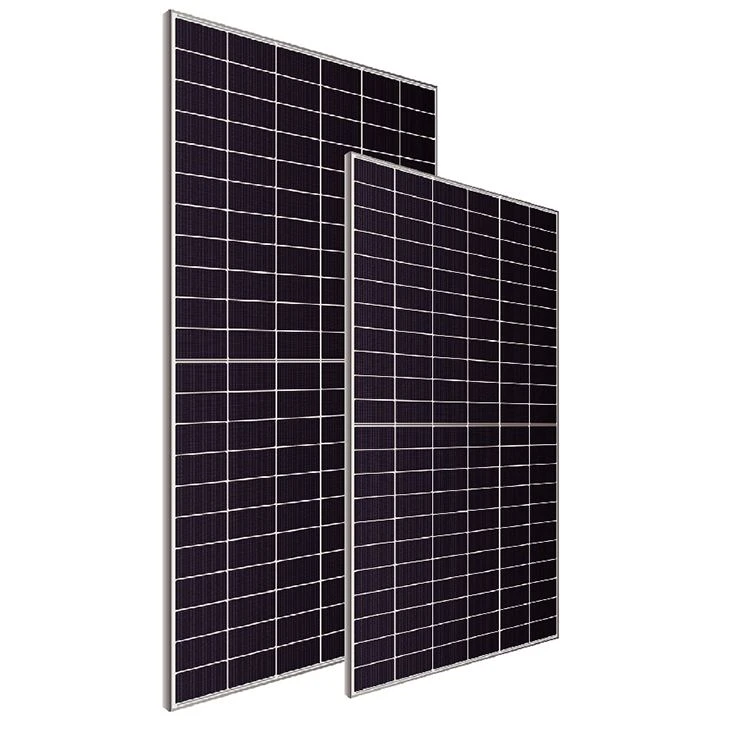

DSBN96-445~465W
High efficiency dual-glass bifacial N-type solar module
DSBN96-445~465W High efficiency dual-glass bifacial N-type solar module
Providing 5%-25% extra power frombackside in different scenarios.
MBB and high-density interconnecttechnology improves power output andmodule efficiency.
Dual-glass encapsulation and Al framefeatures better weather resistance andensures long-term power generation andprofit of the power station.
DS Technology
715W+ power output, bringing lower LCOE and BOS.
Up to 80% Bifaciality
Up to 80% bifacial factor gains 10%-30% extra genera-tion in different scenarios.
Sealing with PID

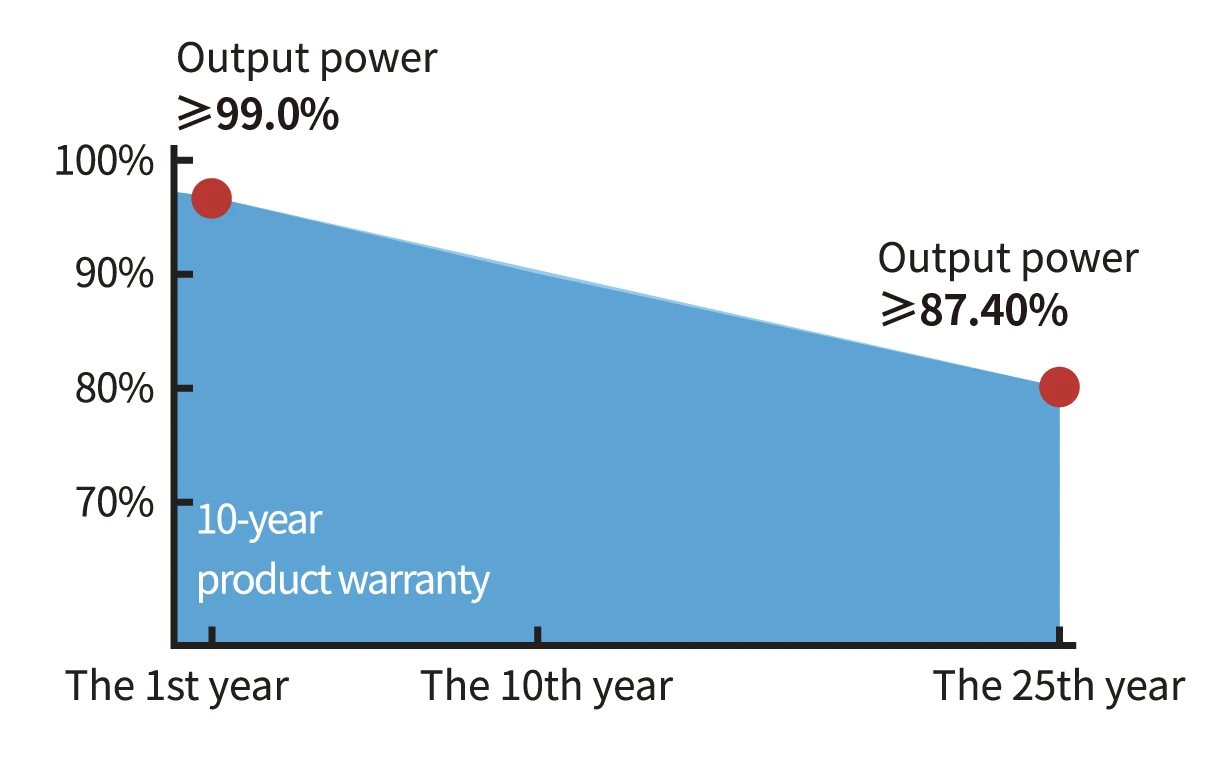

Lower LID and anti PID ensure long-term returns.
Suitable for Utility project
Optional G12R modules, Maximize the use of horizontalspace for modules in container High Cube
CERTIFICATION
IEC 61215, IEC 61730, UL 61730 ISO9001:2015: ISO Quality Management System
ISO14001: 2015: ISO Environment Management System
ISO45001: 2018: Occupational Health and Safety
IEC62941: Guideline for module design qualification and type approval
MECHANICAL PARAMETERS
| Cell (mm) | 182 × 105 TOPCon |
| Dimensions (L×W×H) (mm) | 1762 × 1134 × 30 |
| Weight (kg) | 24.1 |
| Cable Cross Section Size (mm²) | 4 |
| No. of Cells & Connections | 96 (6×16) |
| No. of Diodes | 3 |
| Frame | Anodized Aluminium Alloy |
| Glass Thickness (mm) | 2.0 |
QUALIFICATION
| Temperature Cycling Range (°C) | -40 ~ +85 |
| Max. Series Fuse Rating (A) | 35 |
| Max. Wind Load / Max. Snow Load (Pa) | 2400 / 5400 |
| Fire Rating | Class C |
| Junction Box & Connector Protection Grade | IP68 |
| Bifacial Factor (%) | 80 ± 5 |
ELECTRICAL PARAMETERS
| DSBN445 | DSBN450 | DSBN455 | DSBN460 | DSBN465 | ||
| STC | Maximum Power (Pmpp) (W) | 445 | 450 | 455 | 460 | 465 |
| Power Tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | |
| Maximum Power Voltage (Vmp) (V) | 28.65 | 28.82 | 28.99 | 29.16 | 29.33 | |
| Maximum Power Current (Imp) (A) | 15.54 | 15.62 | 15.7 | 15.78 | 15.86 | |
| Open Circuit Voltage (Voc) (V) | 35.4 | 35.57 | 35.74 | 35.91 | 36.08 | |
| Short Circuit Current (Isc) (A) | 16.24 | 16.32 | 16.4 | 16.48 | 16.56 | |
| Module Efficiency (%) | 22.27 | 22.52 | 22.77 | 23.02 | 23.27 | |
| BNTI | Maximum Power (Pmpp) (W) | 493 | 499 | 504 | 510 | 515 |
| Maximum Power Voltage (Vmp) (V) | 28.65 | 28.82 | 28.99 | 29.16 | 29.33 | |
| Maximum Power Current (Imp) (A) | 17.22 | 17.31 | 17.4 | 17.48 | 17.57 | |
| Open Circuit Voltage (Voc) (V) | 35.4 | 35.57 | 35.74 | 35.91 | 36.08 | |
| Short Circuit Current (Isc) (A) | 17.99 | 18.08 | 18.17 | 18.26 | 18.35 | |
| Module Efficiency (%) | 24.68 | 24.95 | 25.23 | 25.51 | 25.79 | |
PACKING CONFIGURATION
| Modules Per Pallet | 36 |
| Pallets Per Container | 26 |
| Modules Per Container | 736 |
TEMPERATURE COEFFICIENTS
| Nominal Module Operating Temperature (NMOT) | 43 ± 2°C |
| Temperature Coefficient Voltage (Voc) | -0.250%/°C |
| Temperature Coefficient Current (Isc) | +0.045%/°C |
| Temperature Coefficient Power (Pm) | -0.290%/°C |
|
【Product introduction】 |
|
|
Cell |
Mono 156.75mmx31.2mm High Efficiency Solar Cell |
|
No. of cells |
408(34×12) |
|
Rated Maximum Power(Pmax) |
405W |
|
Junction Box |
IP67 |
|
Maximum System Voltage |
1000V/1500V DC(IEC) |
|
Operating Temperature |
-40℃～+85℃ |
|
Dimensions |
1941mm×1048mm×40mm |
|
Weight |
23kg±3% |
【Product description】
Novel 405W Monocrystalline Solar Pv Panel, 5-10% more module power is gain for the 34x12 layout shingled cut cells new design 405W eclipse mono solar Pv panel which is the result of application of conductive paste that enables novel interconnection technologies.
Shingling technology is a promising approach to improve photovoltaic module efficiency and optimize its energy yield, because it allows an increase of module output power without introducing substantial modification in the cell fabrication process and in the module bill of materials (BOM).
In a shingled module, c-Si PV cells are cut in smaller stripes (usually 3 to 6 stripe per cell, according to the layout) called "shingles" and assembled in strings by connecting the front of the leading edge of each shingle to the back of the tail edge of next one, in a similar way to tiles on a rooftop.
Electrically conductive adhesives (ECAs) are typically used to make the shingles interconnection while the bussing ribbons can be attached using ECA as well as traditional soldering.
1 KEY FEATURES

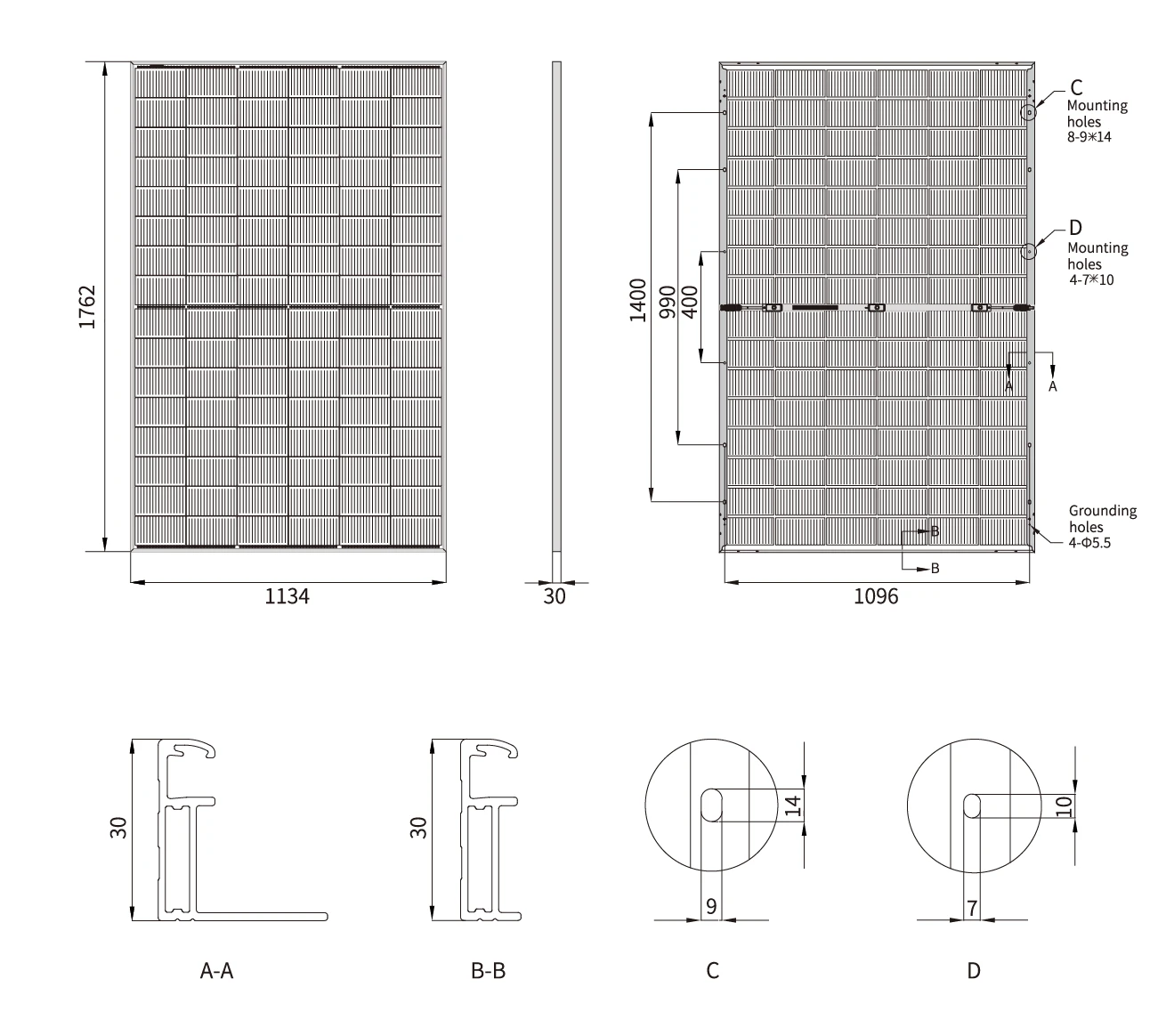

2 MECHANICAL DIAGRAMS
3 ELECTRICAL PARAMETERS at STC
|
Rated Maximum Power(Pmax) [W] |
390 |
395 |
400 |
405 |
|
Open Circuit Voltage(Voc) [V] |
44.71 |
44.91 |
45.12 |
45.32 |
|
Maximum Power Voltage(Vmp) [V] |
36.80 |
37.01 |
37.21 |
37.41 |
|
Short Circuit Current(Isc) [A] |
11.16 |
11.24 |
11.33 |
11.41 |
|
Maximum Power Current(Imp) [A] |
10.60 |
10.67 |
10.75 |
10.82 |
|
Module Efficiency [%] |
19.17 |
19.42 |
19.66 |
19.91 |
|
Power Tolerance |
0~+5W |
|||
|
Temperature Coefficient of Isc(α_Isc) |
0.05%/℃ |
|||
|
Temperature Coefficient of Voc(β_Voc) |
-0.275%/℃ |
|||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.368%/℃ |
|||
|
STC |
Irradiance 1000W/m², cell temperature 25℃, AM1.5G |
|||
