【Diagram】Hybrid storage solar system
【Solution and components】
No. | Component | Description | Quantity |
1 | Solar Panel | TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W | 550 pieces |
2 | 150KW storage/hybrid inverter | AC 380-415V, 50/60HZ | 1 pieces |

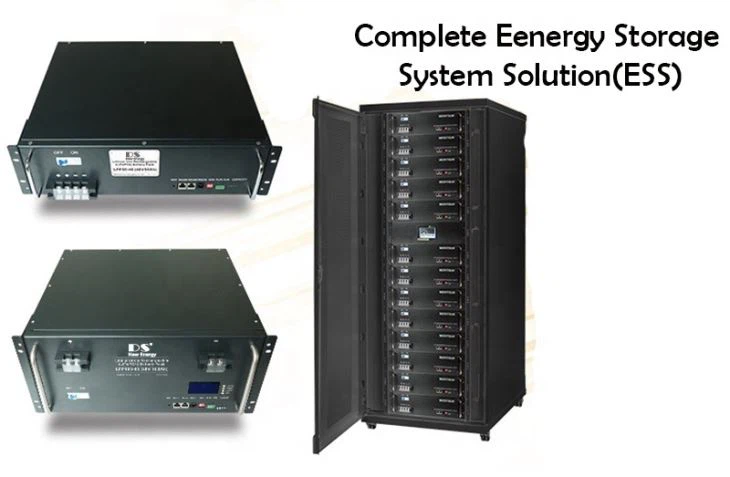

3 | GEL battery Lithium-ion battery (available) | 12v 250Ah 48V 100Ah(available) | 64 pieces 32 pieces(available) |
4 | Mounting Support | Pitched / flat roof, ground | 1 set |
5 | Cable | Single-core 4mm2 and 10mm2 PV cable | 2,500 meters |
6 | Connector | MC4 connector | 60 pairs |
7 | Toolkits | 5 kinds of PV installation tools | 1 bag |
【Product description】

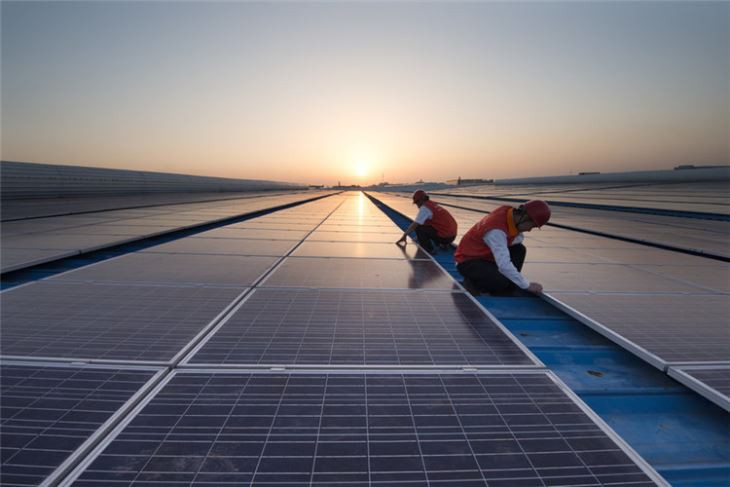

150kw commercial storage pv power system is composed of high conversion efficiency mono solar module, storage inverter, Gel battery,mounting support,cable, etc. Arranging the module of the system requires close to 1000 m2 on the sloped rooftop and 1400 m2 on the flat roof.
Bathed in plentiful sunshine region it is able to have the yield of about 4 kilowatt-hours (KWH) per kW of installed capacity every day, averaged throughout the year. Thereby,it gives a sum of near 600kWh of solar power energy a day for your commercial or industrial. Besisdes, Smart energy storage system would timely make the battery fully stored at valley of electricity and discharges at peak of electricity which help cut energy costs and insulate your company from guaranteed energy increases.
