【Diagram】Off grid solar system
【Solution and components】
Item | Model | Description | Quantity |
1 | Solar Panel | TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W | 30 pieces |
2 | PV Combiner Box | 4 inputs 1 output | 1 piece |
3 | Off grid storage inverter | 15kW, AC 110V/120V/208V/220V/380V/, 50/60hz | 1 piece |
4 | GEL battery Lithium-ion battery (available) | 12v 250Ah 48V 100Ah(available) | 8 pieces 4 pieces (available) |
5 | Mounting Support | Pitched / flat roof, ground | 1 set |
6 | Cable | Single-core 4mm2 and 10mm2 PV cable | 400 meters |
7 | Connector | MC4 connector | 10 pairs |
8 | Tools Bag | 5 kinds of PV installation tools | 1 bag |
【Product description】

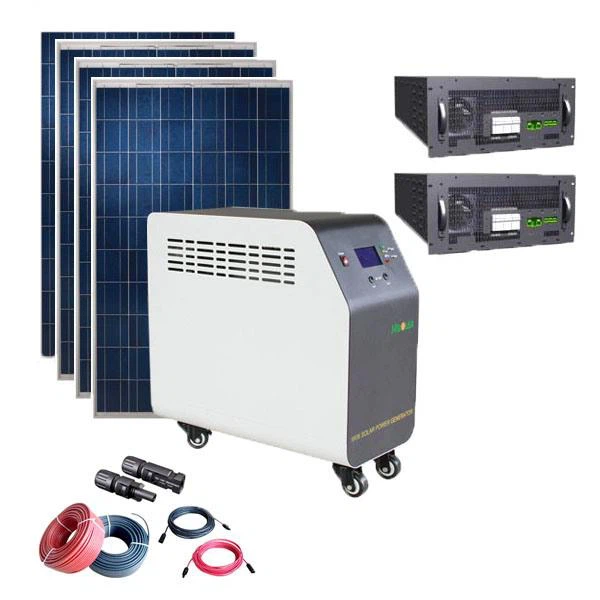

15kw home off grid solar generator system for a mountain cabin, an isolated garden house in the country, a vacation home on an island or for those who just want to be off the grid.
15kW off grid solar generator package includes the essential components for installation:
TOPCon solar panel 580W, 30 pieces
Off-grid Inverter 15kW EU standard or US standard, 1 piece
Combiner Box 6 inputs 2 outputs, 1 piece
Charge controller 192V 100A, 1 piece
Battery 12V 250AH (adjustable),16 pieces
Mounting Support Pitched / flat roof, ground, 1 set
Cable and connectors
The solar generator is suitable for most off-grid homes and cabins and is typically paired with an inverter/charger.
