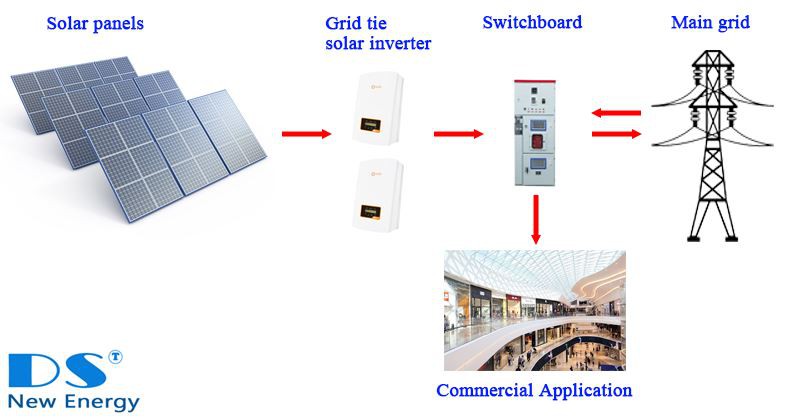

【Diagram】Grid tie (on grid) Solar system
Solution and components
|
Item |
Model |
Description |
Quantity |
|
1 |
Solar Panel |
TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W |
180 pieces |
|
2 |
100kw grid tied inverter |
AC 220v-240v, 380V 418V 50/60hz |
1 piece |
|
3 |
Monitoring System |
Wifi |
1 pieces |
|
4 |
Mounting Support |
Pitched / flat roof, ground |
1 set |
|
5 |
Cable |
Single-core 4mm2 and 10mm2 PV cable |
1,800 meters |
|
6 |
Connector |
MC4 connector |
36 pairs |
|
7 |
Tools Bag |
5 kinds of PV installation tools |
1 bag |
Product description
100kw commercial on grid solar power system includes high performance solar modules and high efficiency inverter system - a revolutionary way of maximizing the sun's power using power optimizers.
The power optimizers maximize energy from the modules through multi MPPT tracking. Because power optimizers automatically maintain a fixed string voltage, and the inverter works at optimal efficiency.
Benefits include:
Up to 25% increase in power output.
Maximum roof utilization.
Safest solar system with built in arc fault detection and safe DC features.
Built-in monitoring for unprecedented remote maintenance capabilities.
