500kw Industrial On Grid Solar Power System

500kw Industrial on Grid Solar Power System

Grid Tied (On grid) system is the simplest system and most cost effective for residential and commercial uses. This system send the surplus power to utility grid storage it for later use. The 500kw commercial and industrial on grid solar power system needs 1786 pcs 275W or 1640 pcs 305W high efficiency monocrystalline solar panels and 10 pcs 50KW string inverters with multi MPPT tracking function. Ground mounted or rooftop mounted will be optional. Ground mounted system will be more efficient in power output but cost more in racking support compared with rooftop mounted.

Share to

Send Inquiry

Chat Now

Description

Technical Parameters

【Diagram】Grid tie (on grid) Solar system

【Solution and components】

No.	Component	Description	Quantity
1	Solar Panel	TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W	1,000 pieces
2	125kw grid tied inverter	AC 220v-240v, 380V 418V 50/60hz	4 pieces
3	Monitoring System	Wifi	1 piece
4	Mounting Support	Pitched / flat roof, ground	1 set
5	Cable	Single-core 4mm²and 10mm²PV cable	9,100 meters
6	Connector	MC4 connector	182 pairs

【Product description】

Grid Tied (On grid) system is the simplest system and most cost effective for residential and commercial uses. This system send the surplus power to utility grid storage it for later use.

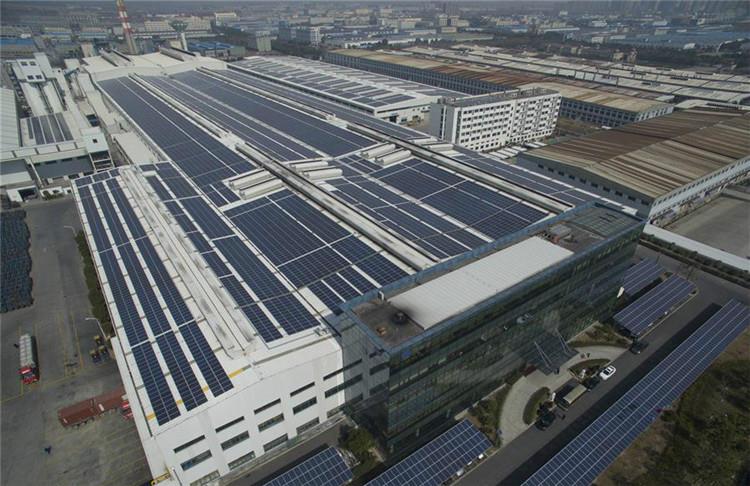

The 500kw commercial and industrial on grid solar power system needs 1,000 pieces of TOPCon solar panel 580W and 4 pcs 125KW string inverters with multi MPPT tracking function. Ground mounted or rooftop mounted will be optional. Ground mounted system will be more efficient in power output but cost more in racking support compared with rooftop mounted.

The 500kw solar power system annually produce power 700,000 kWh in bath of good irradiance and reduce carbon dioxide emissions of 700,000 kg annually.
