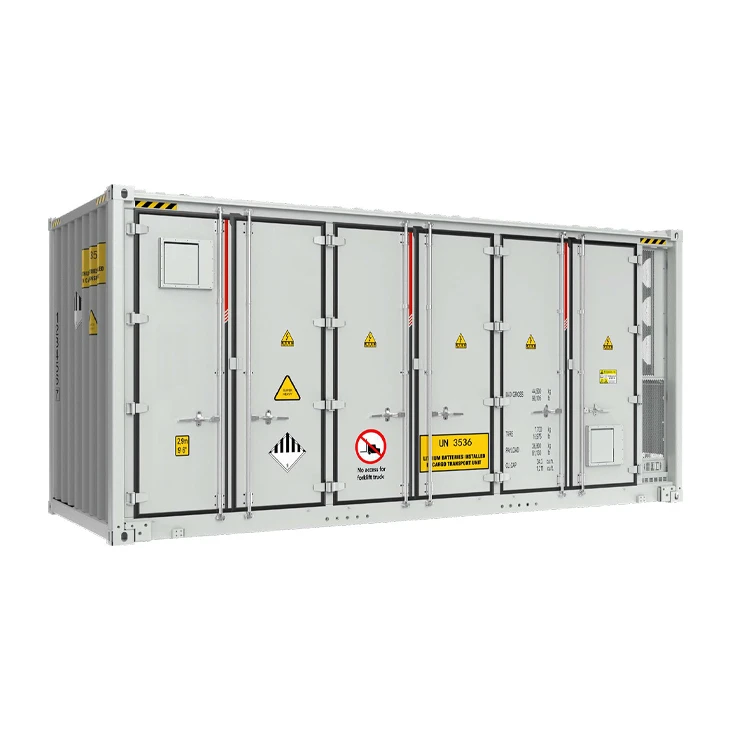

The 5MWh 20-Foot BESS uses 314Ah cells and a modular, pre-installed design for easy deployment and transportation.It features insulation fault protection, integrated fire protection, fast configuration, and one-click networking and upgrades.Commissioning and networking time can be reduced by up to 90%.
Safe
Enclosure IP55 & C5
IEEE693 Standard, applicable to high-intensity seismic regions
Multi-level disconnections for DC circuit
Smart
Intelligent temperature control, temperature difference within container <3°C
PCS, BMS, EMS linkage design, whole process monitoring and management
Level 5 fire protection system integrated with detection, explosion-proof control, explosion relief and fire extinguishing
Simple
Modularized design, simplifying deployment
Battery pre-installation, integrated equipment shipment
Fast configuration, one-key networking and upgrading
SPECIFICATIONS
| Product Model | 5MWh Liquid-cooling Battery Energy Storage System | |
| Basic Parameters | ||
| Standard charge/discharge ratio | 0.5P | |
| Combination mode | 1P104S | |
| Rated Energy | 104.5kWh | |
| Nominal Voltage | 332.8V(Range: 260V~379.6V) | |
| Thermal Management mode | Liquid-cooled | |
| Single PACK Cell Temperature Difference | ≤ 2℃ | |
| Battery Charge/Discharge operating temperature | 0℃~55℃/-20℃~55℃ | |
| Storage Temperature | 0~35℃/-40℃~55℃ (within 1 month) | |
| Dimensions (W*H*D) | 779×250×2150.5mm | |
| Weight | 690kg | |
| Storage Humidity | < 95%(no-condensing) | |
| Maximum Operating Altitude | 3000m | |
| Product Model | RP4104S1PL314BG (Battery Pack) | |
| Basic Parameters | ||
| Standard charge/discharge ratio | 0.5P | |
| Combination mode | 1P416S | |
| Rated Energy | 418kWh | |
| Nominal Voltage | 1331.2V(Range: 1040V~1500V) | |
| Thermal Management mode | Liquid-cooled | |
| Communication mode | CAN | |
| Battery Charge/Discharge operating temperature | 0℃~55℃/-20℃~55℃ | |
| Storage Temperature | 0~35℃/-40℃~55℃ (within 1 month) | |
| Dimensions (W*H*D) | 990×1339×2151mm | |
| Weight | 2900kg | |
| Storage Humidity | < 95%(no-condensing) | |
| Maximum Operating Altitude | 3000m | |
| Product Model | 5MWh Liquid-cooling Battery Energy Storage System | |
| Basic Parameters | ||
| Standard charge/discharge ratio | 0.5P | 0.25P |
| Combination mode | 12P416S | |
| Rated Energy | 5015 kWh | |
| Nominal Voltage | 1331.2V (range: 1040V~1500V) | |
| Thermal Management mode | Liquid-cooled | |
| Fire-fighting systems (battery containers) | Hot aerosol | |
| IP rating | IP55 | |
| Communication mode | CAN/RS485/LAN | |
| Battery Charge/Discharge operating temperature | 0℃~55℃/-20℃~55℃ | |
| Storage Temperature | 0~35℃/-40℃~55℃ (within 1 month) | |
| Dimensions (W*H*D) | 6058×2896×2438mm | |
| Weight | ≤ 44.5T | |
| Storage Humidity | < 95%(no-condensing) | |
| Maximum Operating Altitude | 3000m | |
