TOP 10 72 Cells 365W 370W 375W 380W Dual Glass HJT Solar PV Module

Product Introduction:

Because of bifacial design, power generation of dual glass HJT solar modules can be increased by 10% to 30% in different applications, such as grassland, concrete floor, snowfield and reflective cloth. Overall generating capacity of dual glass HJT bifacial modules is 40% higher than that of regular ones. Mass production power output of HJT 72-cell bifacial modules has exceeded 380W.

Send Inquiry

Chat Now

Description

Technical Parameters

【Product introduction】
Cell	Mono 156.75mm HJT bifacial
No. of cells	72（6×10）
Rated Maximum Power(Pmax)	380W
Junction Box	IP68
Maximum System Voltage	1000V/1500V DC(IEC)
Operating Temperature	-40℃～+85℃
Dimensions	1972mm×992mm×5mm
Weight	24kg±3%

【Product description】

Mass production power output of HJT 72-cell bifacial modules has exceeded 380W.

Due to the material and structure characteristics, dual-glass module fundamentally avoid defects such as PID, micro cracks of cells, and snail trail ,which can reduce the investment cost, transport cost and the operation risk of power plants, etc.

72 cells 380W dual glass HJT solar pv panel

1 KEY FEATURES

2 MECHANICAL DIAGRAMS

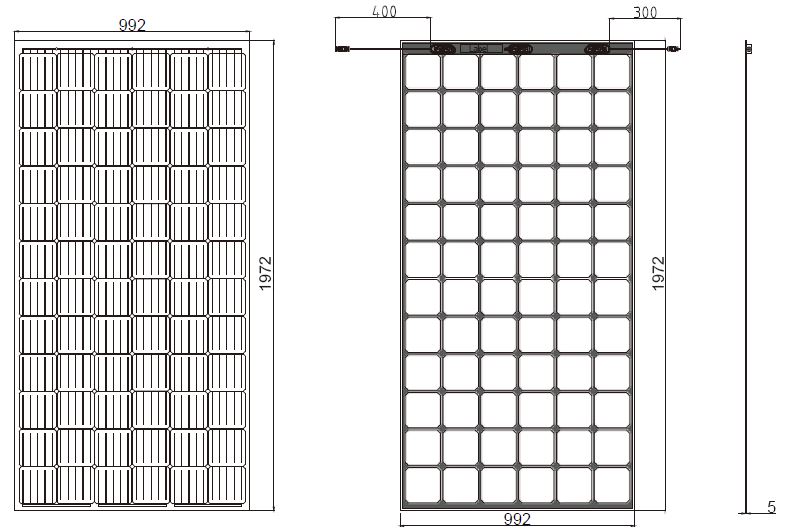

Dimension of 72 cells 380W dual glass HJT solar pv panel

3 ELECTRICAL PARAMETERS at STC

Rated Maximum Power(Pmax) [W]	365	370	375	380
Open Circuit Voltage(Voc) [V]	48.16	48.41	48.71	49.01
Maximum Power Voltage(Vmp) [V]	39.76	40.13	40.43	40.86
Short Circuit Current(Isc) [A]	9.72	9.78	9.84	9.91
Maximum Power Current(Imp) [A]	9.19	9.23	9.28	9.32
Module Efficiency [%]	18.7	19	19.2	19.5
Power Tolerance	0~+5W
Temperature Coefficient of Isc(α_Isc)	0.048%/℃
Temperature Coefficient of Voc(β_Voc)	-0.271%/℃
Temperature Coefficient of Pmax(γ_Pmp)	-0.336%/℃
STC	Irradiance 1000W/m², cell temperature 25℃, AM1.5G
