On Gird Inverter 10KTL-M / 12KTL-M

On Gird Inverter 10KTL-M / 12KTL-M
10KW-12KW on grid solar inverter with MPPT transformerless and communication function, LCD display, IP65 protection designed for indoor and outdoor installations. Both 10KTL-M and 12KTL-M are most widely used for rooftop residential solar power system no matter the solar panel is monocrystalline or polycrystalline type.A 10KW-12KW Solar Power Kit requires nearly 800 square feet of space. This could produce an estimated 1,000 to 1,700 kilowatt hours (kWh) of alternating current (AC) power per month, assuming 3-5 sun hours per day with the solar array optimized facing. The highest output will be achieved with an unobstructed south-facing view of the sun for maximum solar power. The actual power generated will vary based on location, equipment and installation factors.
Product Details

Product description

10KW-12KW on grid solar inverter with MPPT transformerless and communication function, LCD display, IP65 protection designed for indoor and outdoor installations.

Both 10KTL-M and 12KTL-M are most widely used for rooftop residential solar power system no matter the solar panel is monocrystalline or polycrystalline type.

A 10KW-12KW Solar Power Kit requires nearly 800 square feet of space. This could produce an estimated 1,000 to 1,700 kilowatt hours (kWh) of alternating current (AC) power per month, assuming 3-5 sun hours per day with the solar array optimized facing. The highest output will be achieved with an unobstructed south-facing view of the sun for maximum solar power. The actual power generated will vary based on location, equipment and installation factors.


Sales Area

Asia Pacific EMEA South America


High Yield

Max. efficiency 98.6 %, European efficiency 98.1 %

2 MPP Trackers, compatible with different PV orientation design


Easy O&M

String currrent monitoring function for fast trouble shooting

Compact design and light weight for easy installation, can be installed   by one person


Saved Investment

Integrated both DC and AC SPD, low system cost

Max. DC/AC ratio up to 1.2


Grid Support

Compliance with CE, IEC 62109-1/-2, G59/3, VDE 0126-1-1/4105

Active & reactive power control, power ramp rate control

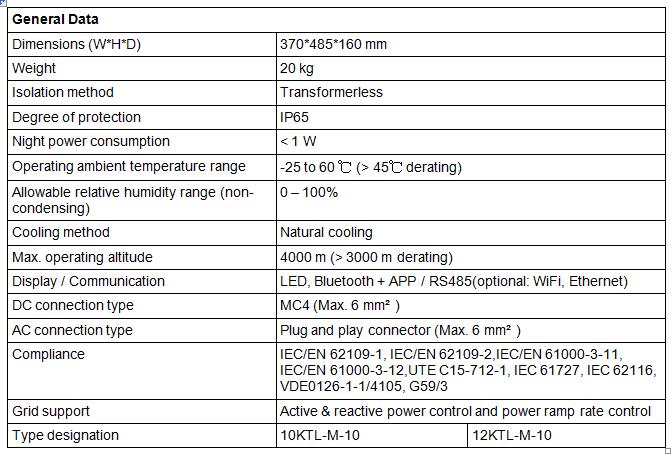

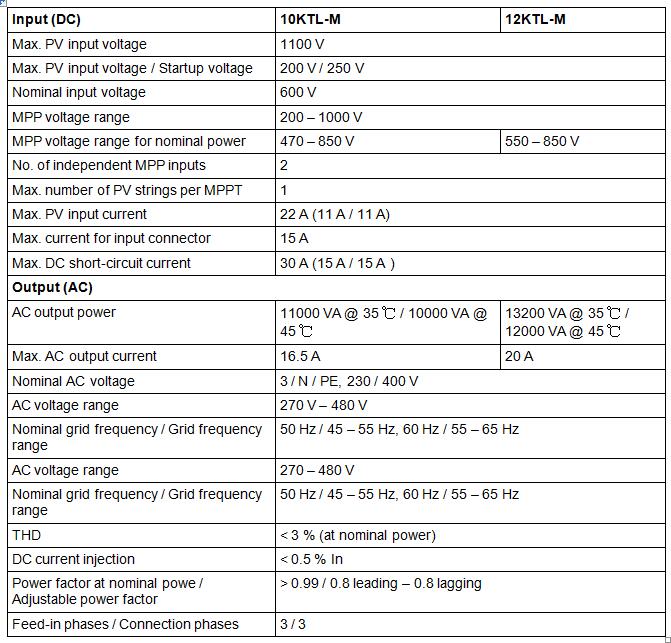

Technical Data


certification -1.jpg
