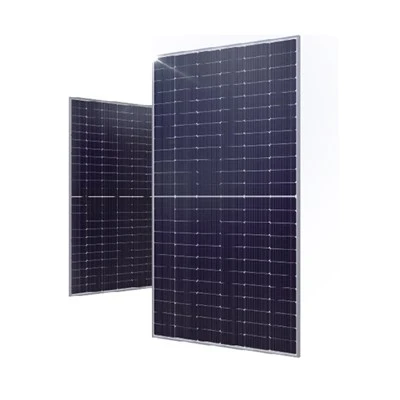

HJT Solar Panel DSHB108 500-525W
Bifacial Half Cell Double-glass Solar Module
DS Technology: More Power, Less Degradation
µc-Si and Gettering Synergy – Clean Cells, High Output
DSHB108 combines microcrystalline silicon (µc-Si) and gettering processes to minimize impurities, enabling higher cell performance and stronger module output.
95% Bifaciality – Higher Backside Energy Gain
The naturally symmetrical bifacial layout delivers excellent rear-side generation, with up to 95% bifaciality for greater energy harvest in reflective environments.
PIB Sealing + Dual Glass – Proven Durability
Utilizing PIB edge sealing and durable double-glass construction, this module passes IEC salt mist level 8, offering high resistance to corrosion in coastal or humid climates.
Optimized for Utility-Scale Solar Projects
Designed to deliver strong returns in utility and large-scale installations, the DSHB108 supports:
Lower Balance of System (BOS) Costs
Minimized Levelized Cost of Energy (LCOE)
Higher Output, Longer Lifespan, Better ROI
CERTIFICATION
IEC61215, IEC61730
ISO9001: 2015 Quality Management System
ISO14001: 2015 Environment Management System
ISO45001: 2018 Occupational Health and Safety
IEC62941: 2019 Terrestrial photovoltaic (PV) modules-Quality
system for PV module manufacturing
QUALITY ASSURANCE
MECHANICAL PARAMETERS
|
Cell (mm) |
182*105 Mono |
| Dimensions (L*M*H) (mm) | 1960*1134*30 |
| Weight (kg) | 27.4 |
| Cable Cross Section Size (m㎡) | 4 |
| No. of Cells & Connections | 108(6*18) |
| No. of Diodes | 3 |
QUALIFICATION
| Max. System Voltage (V DC) | DC1500V (IEC) |
| Temperature Cycling Range (℃) | -40~+85 |
| Max. Series Fuse Rating (A) | 20 |
| Max. Reverse Current (A) | 20 |
| Max. Wind Load / Max. Snow Load (Pa) | 2400 / 5400 |
| Hot Spot Rate | 100% Free |
| Connector Type | MC4 Compatible |
| Fire Rating | Class II |
| Junction Box & Connector Protection Grade | IP68 |
| Tolerance of Pmax | 0~+3% |
ELECTRICAL PARAMETERS
| DSHM108-500 | DSHM108-505 | DSHM108-510 | DSHM108-515 | DSHM108-520 | DSHB108-525 | ||
|---|---|---|---|---|---|---|---|
|
STC AM1.5, 1000W/㎡ Cell Temperature 25℃ |
Max. Power at STC (Pmpp/W) | 500 | 505 | 510 | 515 | 520 | 525 |
| Max. Power Voltage (Vmp/V) | 34.16 | 34.27 | 34.38 | 34.49 | 34.60 | 34.71 | |
| Max. Power Current (Imp/A) | 14.64 | 14.74 | 14.84 | 14.94 | 15.04 | 15.14 | |
| Open Circuit Voltage (Voc/V) | 40.76 | 40.87 | 40.98 | 41.09 | 41.20 | 41.31 | |
| Short Circuit Current (Isc/A) | 15.48 | 15.59 | 15.70 | 15.81 | 15.92 | 16.03 | |
| Module Efficiency (%) |
22.5 |
22.7 | 22.9 | 23.2 | 23.4 | 23.6 | |
|
NOCT AM1.5, 800W/㎡, Ambient Temperature 20℃, Wind Speed 1m/s |
Max. Power at NOCT (Pmpp/W) | 381 | 385 | 389 | 393 |
397 |
400 |
| Max. Power Voltage (Vmp/V) | 32.63 | 32.73 | 32.83 | 32.93 | 33.03 | 33.13 | |
| Max. Power Current (Imp/A) | 11.70 | 11.78 | 11.86 | 11.94 | 12.02 | 12.10 | |
| Open Circuit Voltage (Voc/V) | 38.90 | 39.01 | 39.11 | 39.22 | 39.32 | 39.43 | |
| Short Circuit Current (Isc/A) | 12.37 | 12.46 | 12.55 | 12.64 | 12.72 | 12.81 | |
PACKING CONFIGURATION
| Container (High cube) | |
|---|---|
| Modules Per Pallet | 36 |
| Pallets Per Container | 24 |
| Modules Per Container | 864 |
TEMPERATURE COEFFICIENTS
| Temperature Coefficient Voltage (Voc) | -0.22 %/℃ |
| Temperature Coefficient Current (Isc) | 0.04 %/℃ |
| Temperature Coefficient Power (Pm) | -0.24 %/℃ |
I-V CURVE
