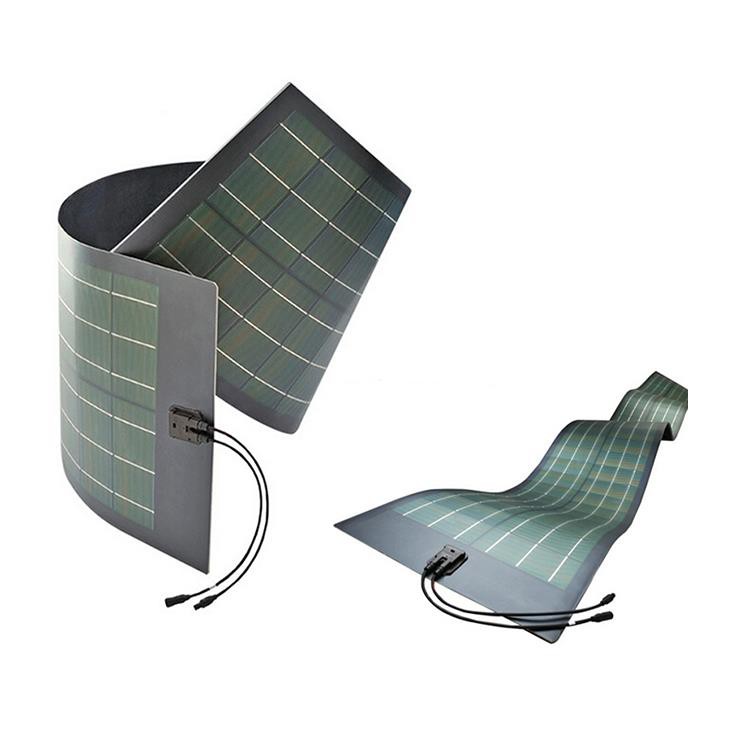

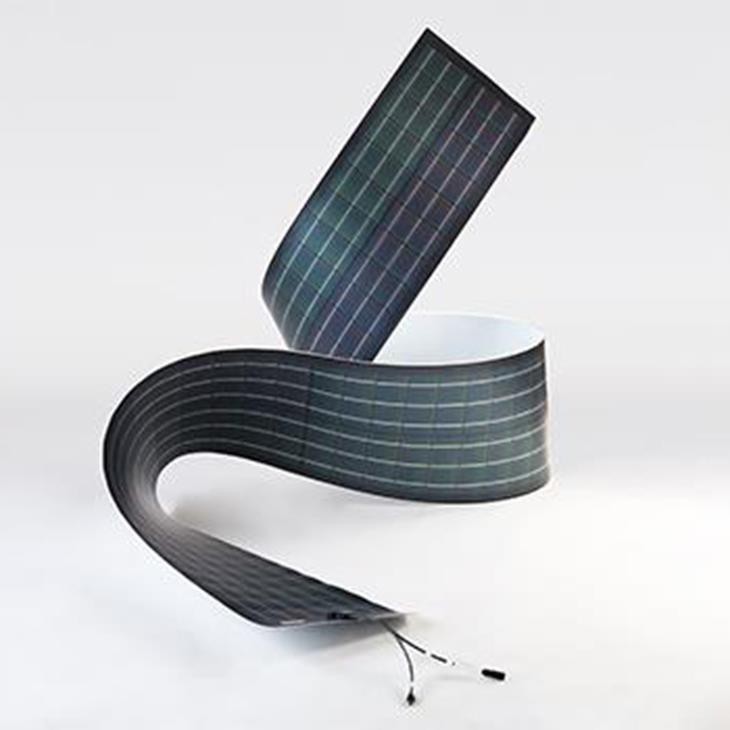

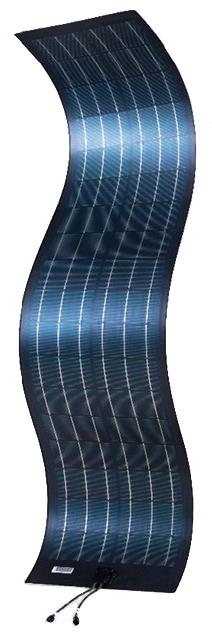

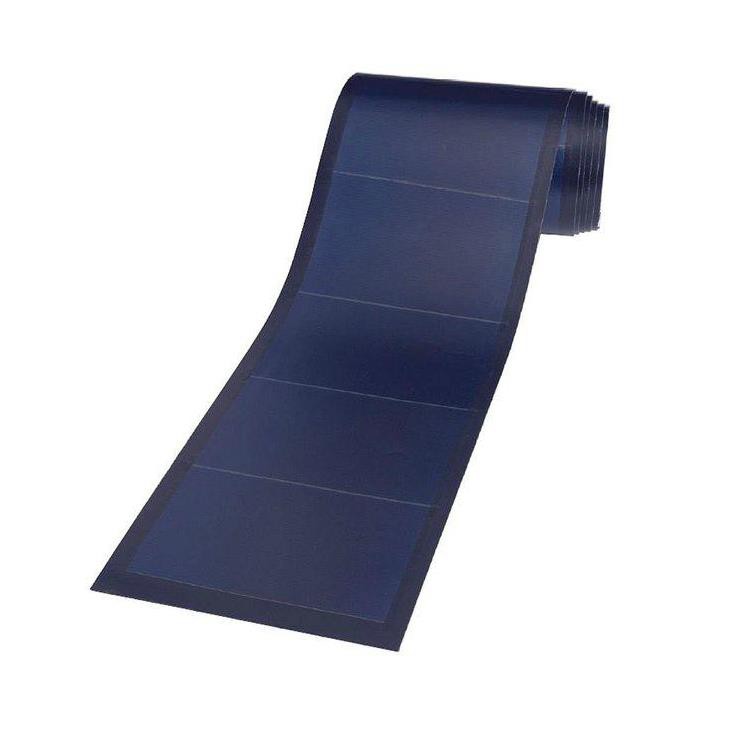

【Product introduction】 | |
Cell | Copper Indium Gallium Diselenide CIGS solar cell |
Substrabe of solar cell | Polymer or glass or metal foil |
Rated Maximum Power(Pmax) | 140W |
Junction Box | IP68 |
Maximum System Voltage | 1000VDC(IEC) |
Operating Temperature | -40℃ ～ +85℃ |
Dimensions | 2583mm×348mm×17mm |
Weight | 2.1kg |
【Product description】
Thin-film PV, in particular CIGS, is a key technology to be one of the future technologies of photovoltaics and has great potential for further technological developments. CIGS thin-film modules have attracted more and more attention in the solar industry.
CIGS solar module can be widely used on off grid solar power plant, grid tie solar power plant, portable electronics and other customized applications.
CIGS solar module on different substrate can be featured as:
Best Power-to-Weight Ratio (50 - 250 watt/kg)
More applications compared to rigid based PV

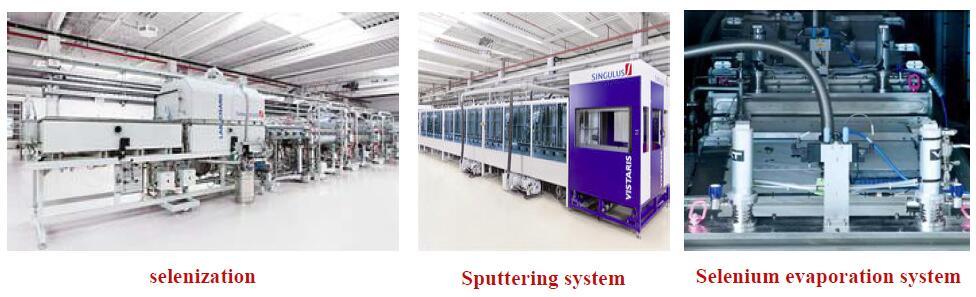

Allows for easy Roll-to-Roll fabrication
More efficient use of equipment and manufacturing floor space
Plastic substrate does not crack or shatter upon impact
Customizable (with Monolithic Integration)
Simplified electrical and mechanical construction
Customized cell shapes easily integrated into manufacturing process
Meaningful Output in Small Area
Higher voltages economically achieved in smaller areas
CIGS solar modules range from 90 to 300 Watts DC, and could make your PV installation quicker, easier and less costly for your commercial and industrial use.
1 KEY FEATURES
● Aesthetic appealing ● High efficiency of up to 18.5% ● Flexible and bendable ● Light weight and portable ● Waterproof ● Easy installed on many surfaes ● Reliable and durable |
|

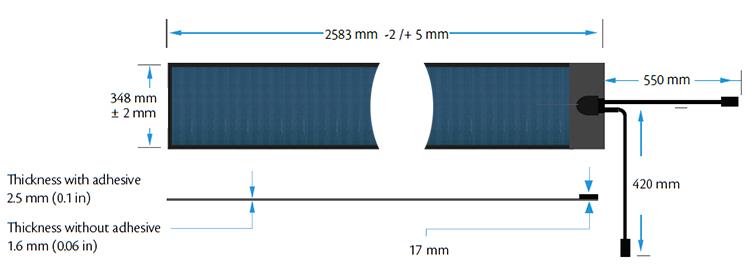

2 MECHANICAL DIAGRAMS
3 ELECTRICAL PARAMETERS at STC
Rated Maximum Power(Pmax) [W] | 110 | 115 | 120 | 125 | 130 | 135 | 140 |
Open Circuit Voltage(Voc) [V] | 36.33 | 37.2 | 37.81 | 38.65 | 39.44 | 40.13 | 40.92 |
Maximum Power Voltage(Vmp) [V] | 28.41 | 29.32 | 30.34 | 31.26 | 32.12 | 33.06 | 33.92 |
Short Circuit Current(Isc) [A] | 4.67 | 4.62 | 4.59 | 4.54 | 4.51 | 4.46 | 4.52 |
Maximum Power Current(Imp) [A] | 3.91 | 3.93 | 3.98 | 4.03 | 4.07 | 4.13 | 4.15 |
Module Efficiency [%] | 14.40% | 15.00% | 15.70% | 16.40% | 17.00% | 17.70% | 18.30% |
Power Tolerance | 0~+5W | ||||||
Temperature Coefficient of Isc(α_Isc) | 0.008%/℃ | ||||||
Temperature Coefficient of Voc(β_Voc) | -0.281%/℃ | ||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.379%/℃ | ||||||
STC | Irradiance 1000W/m², cell temperature 25℃, AM1.5G | ||||||
