Quick Details
| Type | Solar Air Conditioner |
| Power source | Solar |
| Functions | Cooling/Heating |
| Certification | CE, SGS, ISO9001:2015 |
| Cooling Capacity(btu) | 24000 |
| EER/COP | 5.52 / 5.55 |
| Voltage (V) | 48 |
| Model Number | GTP-24 |
| Cooling Capacity | 7000W/24000BTU/H |
| Heating Capacity | 7000W/24000BTU/H |
| Cooling Rated Input Power | 1268W |
| Heating Rated Input Power | 1261W |
| Cooling Rated Input Current | 26.42A |
| Heating Rated Input Current | 26.27A |
| Air Circulation | 1100m3/h |
| Liquid Quantity(R410A) | 2.3kg |
| Indoor unit | Gross Weight: 19kg |
| Shipping Dimension: 1145*375*315mm | |
| Outdoor unit | Gross Weight/Dimension:70kg |
| Shipping Dimension 1025*395*790mm |
Product Description
Off Grid DC48V 100% solar air conditioner is ideal for places with power shortage conditions, particularly for remote telecom station, container house, motor homes, remote locations, load shedding places, boatinf and island locations. As the latest advancement of the solar PV related technology, this DC48V solar air conditioner will enable using 100% power from solar.
Depending on coditions, the entry level set up can operate up to 10 hours per day using 4-6 pcs 300w solar panels. A configuration of 6-8 pcs 300w solar panels can provide up to 15 hours of daily operation, with 8-12 pcs 300w panels yielding up to 20-24 hours.
The batteries and charge controller must be sized appropriately.
Product show
Key features
100% solar energy, powered by solar panels.
DC48V compressors and motors, no inverters required.
Independent solar air conditioning system, no public grid required.
Reconfigure the number of solar panels and accumulators to meet individualized customization requirements (such as working period and hours).
Structure
100% solar air conditioner is mainly composed of indoor unit, outdoor unit, solar panel, solar controller, battery, PV cables and brackets:
Working Principle
• 100% solar energy, powered by solar panels.
• 100% driven by solar energy,100% energy saving
• 48V DC power drive,no inverter required, no AC power required
• Deep cycle batteries as energy bank for overnight operation,over 8 hrs back up time.
• DC inverter permanent magnet compressors
• Lowest energy consumption,lowest noise level
• DC brushless indoor and outdoor fan motors
• Short investment recovery period(1-3year)
• R410a eco-friendly refrigerant
• Lowest energy loss, SEER>19,48V DC Air Conditioner
• Operating voltage range:60~100V DC
System information
DC 48V 100% Solar Air Conditioner | ||||
5 hours illumination and 10 hours air conditioner a day | ||||
Solar Air Conditioner | 9000btu | 12000btu | 18000btu | 24000btu |
Gel Battery | 4pcs 12V100AH | 4pcs 12V100AH | 4pcs 12V200AH | 4pcs 12V200AH |
The Battery In Series Operation | ||||
Solar PV Panel | 4pcs 36V250W | 4pcs 36V250W | 8pcs 36V250W | 8pcs 36V250W |
2pcs panels in series,2groups in parallel | 2pcs panels in series,4groups in parallel | |||
48V controller | 30A | 30A | 40A | 40A |
Air conditioner technical data
Model | GTP-09 | GTP-12 | GTP-18 | GTP-24 | |
Voltage | DC48V | ||||
Cooling Capacity | 2600W 9000BTU/H | 3500W 12000BTU/H | 5000W 18000BTU/H | 7000W 24000BTU/H | |
Heating Capacity(W) | 2800W 9500BTU/H | 3700W 13000BTU/H | 5000W 18000BTU/H | 7000W 24000BTU/H | |
Air Circulation (m3/h) | 500 | 580 | 900 | 1100 | |
Rated Input Power (W) | Cooling | 463 | 627 | 896 | 1268 |
Heating | 491 | 653 | 892 | 1261 | |
Rated Input Current (A) | Cooling | 9.65 | 13.06 | 18.67 | 26.42 |
Heating | 10.23 | 13.6 | 18.58 | 26.27 | |
EER/COP | 5.62/5.7 | 5.58/5.66 | 5.58/5.6 | 5.52/5.55 | |
Liquid Quantity(R410A)Kg | 0.95 | 1.05 | 1.55 | 2.3 | |
Indoor unit | Noise dB(A) | 41 | 43 | 45 | 48 |
Net Weight Gross Weight(kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | |
Net Dimension(mm) | 795*285*215 | 795*285*215 | 1090*330*255 | 1090*330*255 | |
Shipping Dimension(mm) | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | |
Outdoor unit | Noise dB(A) | 52 | 54 | 56 | 60 |
Net Weight Gross Weight(kg) | 35/40 | 35/40 | 61/66 | 65/70 | |
Net Dimension (mm) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 | |
Shipping Dimension (mm) | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | |
Connecting Pipe Specifications(mm) | Liquid Pipe | φ6.35 | φ9.52 | ||
Gas Pipe | φ12.7 | φ16 | |||
connecting line specifications | 5*1.5mm²*3.6m | 4*1.5mm²*4.15m | |||
Power line specifications | 3*4mm² | 3*6mm² | |||
Compressor Brand | Toshiba | ||||
Details
1. 100% solar air conditioner:
DC48V compressor, permanent magnet full DC type, 100% energy saving;
48V full DC inverter controller system, no inverter required, improve utilization;
Both indoor and outdoor motors use brushless DC motors with good stability and long service life;
High efficiency heat exchanger, more energy saving effect.

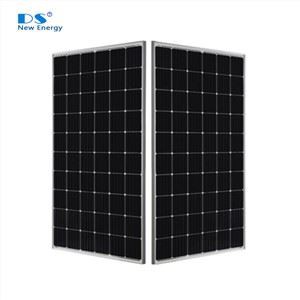

2. Solar panel:
Long service life: ≥25 years; Less power decrease.
Highest conversion efficiency of 18.3% solar cells.
Anti-reflecting coating and high transmission rate glass and mechanical strength.
High quality EVA and TPT to prevent destroying and water.
Good performance of preventing from atrocious weather such as wind and hails.
3. Solar controller
Aesthetically pleasing metal casing, adaptable to weather changes.
Aluminum profile heatsink for fast heat dissipation and long service life.
LED display screens allow for intuitive information reading and convenient operation.
4. GEL battery
Maintenance-free batteries are safe, environmentally friendly and truly represent green power.
With 1000-1200 cycles of recycling, it boasts high quality and a long service life.
Strong adaptability to ambient temperature (-40°C--65°C).
Withstand long-term discharge capacity, cycle discharge capacity, deep discharge and high current discharge capability.
Overcharged and overdischarged self-protection.
Advantage of 100% solar air condtioner
Packaging and logistics
