Product Characteristics
Optimized design according to local diverse roofing structure and tile shape.
The system uses roof hook to be fixed on the roof and mount the PV module by rail &clamps.
Product Features
Widely use for various tiles (S-Type tile, Scales tile, slating, etc.) and for both crystalline and thin film modules.
Testing strictly according to design standard to ensure high stability.
Simple installation exercise with high efficiency in short working period.
Anodized aluminum & stainless steel material with high durability.

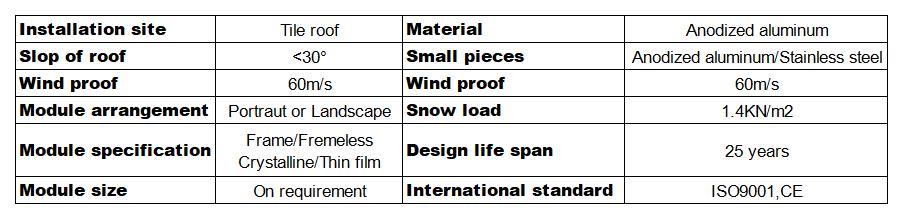

【Technical Data】
| Installation site | Tile roof | Material | Anodized aluminum |
|---|---|---|---|
| Slop of roof | <30° | Small pieces | Anodized aluminum/Stainless steel |
| Wind proof | 60m/s | Wind proof | 60m/s |
| Module arrangement | Portrait or Landscape | Snow load | 1.4KN/m2 |
| Module specification | Frame/FremelessCrystalline/Thin film | Design life span | 25 years |
| Module size | On requirement | International standard | ISO9001,CE |
| Components | |||
|---|---|---|---|
 |
Product:Ceramic tile roof hook 01 Specification:a=166mm;b=115mm;c=180mm;d=50mm Material:SUS304 |
 |
Product:Ceramic tile roof hook 02 Specification:a=130~160mm( adjustable)b=115mm;c=180mm;d=50mm Material: SUS304 |
 |
Product:Ceramic roof hook 03 specification:a=120mm; b=106.5mm; c=80mm;d=75mm; e=50mm Material: SUS304 |
 |
Product:Asphalt shingle roof hook 01 Specification:a=120mm; b=195mm; c=80mm Material:SUS304 |
 |
Product:Asphalt shingle roof hook 02 Specification:a=156~168mm( adjustable);b=140mm; c=54mm Material: SUS304 |
 |
|
