On Grid Inverter 60KU-M

On Grid Inverter 60KU-M
The String inverter 60KU-M preserves the excellent heritage of proven reliability and compact and aesthetic design. This 3‐phase transformerless inverter 60KU-M has 4 independent MPP inputs with maximum input voltage of 1000VDC and has a peak efficiency of 98.9%. With the advanced MPPT technology and all-in-one design, the 60KU-M string inverter maximizes system uptime and power production alongside with economical initial investment and operating maintenance. The 60KU-M on grid string inverter offers communication options: RS485,Ethernet and WiFi to meet different application requirements and complete grid management features.
Product Details

Product description

The String inverter 60KU-M preserves the excellent heritage of proven reliability and compact and aesthetic design.

This 3phase transformerless inverter 60KU-M has 4 independent MPP inputs with maximum input voltage of 1000VDC and has a peak efficiency of 98.9%. With the advanced MPPT technology and all-in-one design, the 60KU-M string inverter maximizes system uptime and power production alongside with economical initial investment and operating maintenance.

The 60KU-M on grid string inverter offers communication options: RS485,Ethernet and WiFi to meet different application requirements and complete grid management features.


Sales Area

USA & Canada


High Yield

Max. efficiency 98.9 %, CEC efficiency 98.5 %

Long-term overload at 1.1 Pn

Up to 4 MPP trackers


Easy O&M

Integrated string current monitoring function for fast trouble shooting

Compact design and light weight for easy installation

Plug-in design of fan and SPD, easy for on-site maintenance


Saved Investment

Max. DC/AC ratio up to 1.5

Integrated DC combiner box, DC/AC switch and DC/AC overvoltage protection


Grid Support

Compliance with standards: UL1741, IEEE 1547, IEEE 1547.1, CSA C22.2   107.1-01

Low/High voltage ride through (L/HVRT)

Active & reactive power control and power ramp rate control

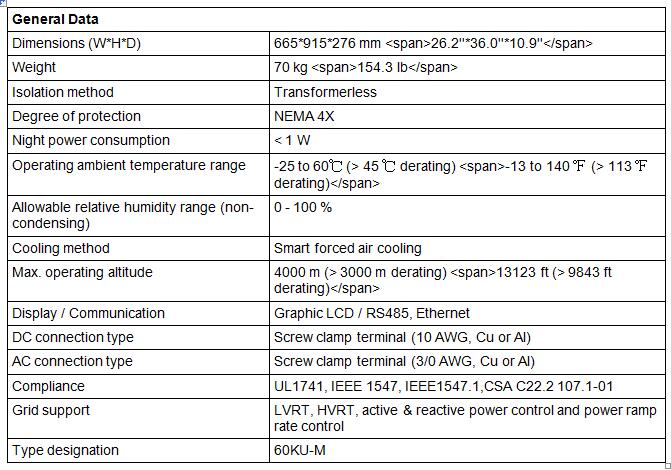

Technical Data
