【Product description】
Agriculture is one of the energy intensive industries and switching to solar can help to reduce or mitigate greenhouse gases emission resulting from growing and harvesting food. Solar irrigation system is one of the solar technologies that can be used to help in irrigation replacing diesel powered water pumps.
Solar power is poised to revolutionize water use in agriculture, providing an attractive means for farmers to irrigate their crops. The amount of energy from the sun that reaches the Earth each day is absolutely enormous.
Benefits
• Pumping of water in for irrigation for drinking water supply in off grid areas, easy installation.
• Farmer can cultivate multiple crops through out the year in off grid areas
• Farmer can save their time spent in collecting and transporting water.
• Lower operation expense compared to diesel pumps
• Zero emission of green house gases.
• Reduced load on national grid.
【Components list】
Typical configuration In Mainland China
43.2KW Solar Panel Powered 27.5kKW AC Water Pump | ||
System | Solar AC pump: 27.5kw | |
Solar panel | Type: mono solar panel(poly optional) 20 pcs in a string, 8 string in parallel | 160 Pcs |
Solar AC pump | Pump capacity: 5.5kw 3-phase 380v Flow: Lift distance 350m, water flow 20m³h | 5 Units |
Pump inverter | Rated Power: 7.5kw, 3-phase 380v MPPT controller: 100V-700V | 5 Units |

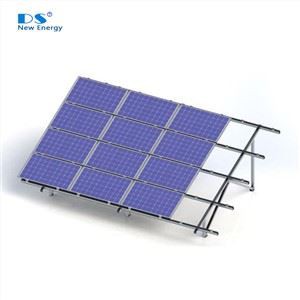

Solar panel ground rack | Ground rack installation Snow load:1.5kN/m2 | 1 Unit |
Combiner box | 8 inputs 1 output | 1 Unit |
Cables | From solar panel to inverter: 4mm2 PV cable:100M From inverter to pump: 3*16mm2 AC cable:100M | 1 Unit |
Working time: During sunshime time | ||
