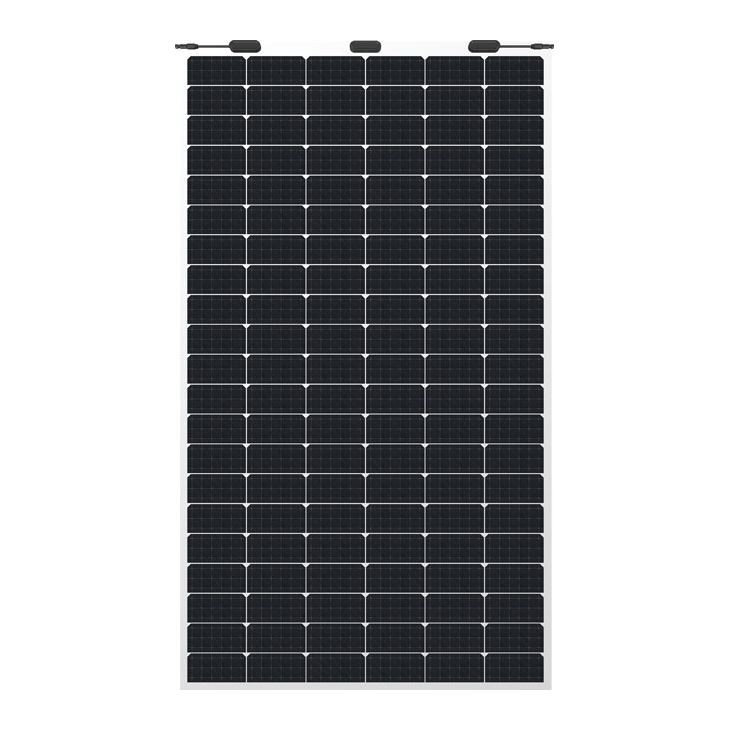

The flexible 385W high-efficiency solar panel is made of advanced PERC Mono solar cells. This series of high-performance flexible solar modules feature with light weight, thin thickness, ultra-flexibility, and quick installation. Both white back-sheet or black back-sheet solar panels are available.
Share to
Send Inquiry
Description
Technical Parameters







Flexible 360W 370W 380W 385W Solar Panel





Flexible 360W 370W 380W 385W Solar Panel



Flexible 360W 370W 380W 385W Solar Panel



Flexible
Flexible polymer materials and MWT PCB packaging technology.



High efficiency
The highest efficiency of the series is up to 19.5%.



Ultra thin
The PV Module thickness is only 1.4mm.



Light weight
Weight is reduced by more than 70%.



Easy Installation
Installation cost is reduced by about 50%.



Attractive design
Specially designed grid feature, nice-looking.



Heat-Resistant
Temperature coefficient is low to -0.36%/℃. More power output in hot environment.



Anti-PID
With specific treatment, PV module passed strict PID test, no PID risk.





CERTIFICATION





3







2024-08-12 092820



IEC 61215, IEC 61730, UL 61730 ISO9001:2015: ISO Quality Management System

ISO14001: 2015: ISO Environment Management System

ISO45001: 2018: Occupational Health and Safety

IEC62941: Guideline for module design qualification and type approval





MECHANICAL PARAMETERS



Cell

Mono

weight

5.7kg±3%

Dimensions

1840mmx1040mmx2.5mm

Cable Cross Section Size

4mm2 (IEC), 12AWG (UL)

No. of cells

126(6x21)

Junction Box

IP68, 3 diodes

Connector

MC4 Compatible

Cable Length (Including Connector)

Portrait: 300mm(+)/400mm(-)

Packaging Configuration

46 Pcs/Pallet,

1104Pcs/40ft Container





QUALIFICATION





Cell

Monocrystalline, 182mmx91mm

No. of cells

126(6×21)

Rated Maximum Power(Pmax)

385W

Maximum Efficiency

20.12%

Junction Box

IP68

Maximum System Voltage

1000V/1500V DC

Operating Temperature

-40℃~+85℃



Max. system voltage

DC 1000V (IEC)/DC 1500V (IEC)

Max. series fuse rating

18A

Operating temperature range

-40℃~+85℃

Bending radius

0.30m



Dimensions





ELECTRICAL PARAMETERS





STC
Irradiance 1000W/m², cell temperature 25℃, AM1.5G
Rated Maximum Power(Pmax) [W] 365 370 375 380 385
Open Circuit Voltage(Voc) [V] 42.4 42.6 42.8 43 43.2
Maximum Power Voltage(Vmp) [V] 34.9 35.1 35.3 35.5 35.7
Short Circuit Current(Isc) [A] 11.09 11.16 11.23 11.3 11.35
Maximum Power Current(Imp) [A] 10.46 10.54 10.62 10.7 10.78
Module Efficiency [%] 19.07 19.34 19.6 19.86% 20. 12%
Power Tolerance 0~+5W
NOCT
Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G
TYPE 365 370 375 380 385
Rated Max Power(Pmax) [W] 274 278 282 286 290
Open Circuit Voltage(Voc) [V] 39.9 40.1 40.3 40.5 40.7
Max Power Voltage(Vmp) [V] 32.8 33 33.2 33.4 33.6
Short Circuit Current(Isc) [A] 8.91 8.98 9.05 9.12 9.19
Max Power Current(Imp) [A] 8.35 8.42 8.49 8.56 8.64






TEMPERATURE COEFFICIENTS



Temperature Coefficient of Isc(α_Isc) 0.044%/℃
Temperature Coefficient of Voc(β_Voc) -0.275%/℃
Temperature Coefficient of Pmax(γ_Pmp) -0.356%/℃







I-V CURVE



IV characteristic





CERTIFICATION



4







Packing and Shipping



1
