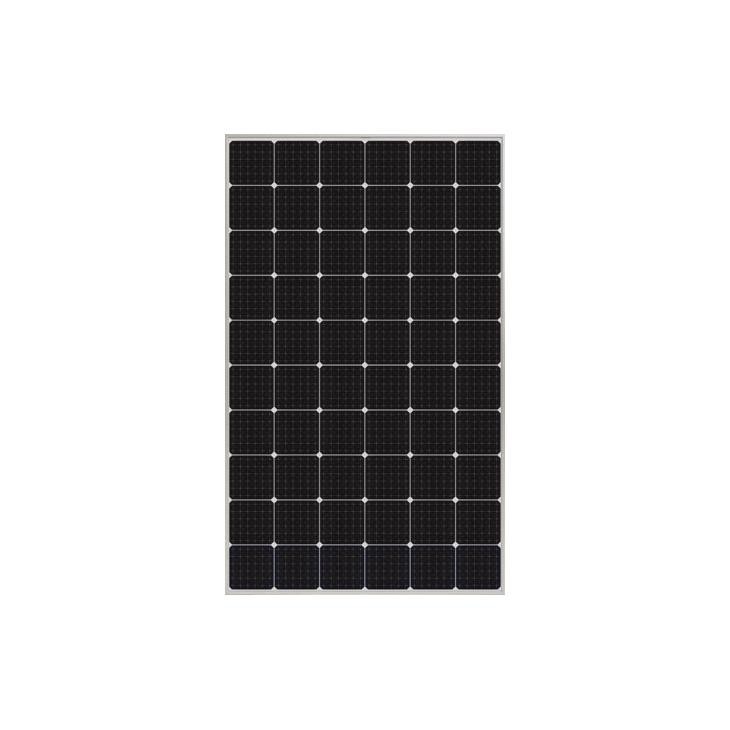

60 Cells 320W MWT PERC Monocrystalline Solar Panel

As MWT solar cells and modules have received more and more attention in recent years, many highly efficient MWT cell types have been presented by mass production. The MWT cell structure benefits from a reduced silver consumption compared with a conventional cell. The combination of a rear surface passivation and the MWT structure is the MWT PERC technology. MWT PERC Solar module: Encapsulated with MWT PERC Solar cell and different manufacturing process; No busbar on the front with the benifit of 3% less shadow and better utilization of sunlight; Effectively avoid the micro crack caused by the pressure between cell edge and ribbon.
Chat Now

 Product introduction

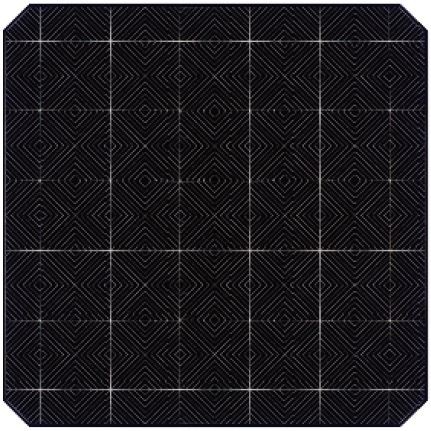

Cell

Monocrystalline 156.75mm

No. of cells

606×10

Rated Maximum Power(Pmax)

320W

Junction Box

IP67

Maximum System Voltage

1000V/DC(TUV)

Operating Temperature

-40~+85

Dimensions

1640mm×992mm×35mm

Weight

18.5kg±3%


Product description

As MWT solar cells and modules have received more and more attention in recent years, many highly efficient MWT cell types have been presented by mass production. The MWT cell structure benefits from a reduced silver consumption compared with a conventional cell. The combination of a rear surface passivation and the MWT structure is the MWT PERC technology.

MWT PERC Solar module:

Encapsulated with MWT PERC Solar cell and different manufacturing process;

No busbar on the front with the benifit of 3% less shadow and better utilization of sunlight;

Effectively avoid the micro crack caused by the pressure between cell edge and ribbon.



1 KEY FEATURES


MWT PERC MONO Key Features 2


2 MECHANICAL DIAGRAMS



Mechanical diagram


3 ELECTRICAL PARAMETERS at STC



Rated Maximum Power(Pmax) [W]

305

310

315

320

Open Circuit Voltage(Voc) [V]

39.7

39.9

40.1

40.3

Maximum Power Voltage(Vmp) [V]

32.7

33.1

33.4

33.8

Short Circuit Current(Isc) [A]

10.15

10.22

10.27

10.31

Maximum Power Current(Imp) [A]

9.32

9.36

9.43

9.48

Module Efficiency [%]

18.7

19.0

19.3

19.6

Power Tolerance

0~+5W

Temperature Coefficient of Isc(α_Isc)

0.061%/

Temperature Coefficient of Voc(β_Voc)

-0.28%/

Temperature Coefficient of Pmax(γ_Pmp)

-0.36%/

STC

Irradiance 1000W/m², cell temperature 25, AM1.5G
