【Diagram】Grid tie (on grid) Solar system
【Application】
This solar system is suitable for home users with solar panels mounted on rooftop or ground.
The solar PV generation must be connected to the main grid.
Solar PV generation can be consumed by home load or export to utility grid.
【Solution and components】
Item | Model | Description | Quantity |
1 | Solar Panel | TOPCon solar panel 580W The following models are optional TOPCon solar panel 630W HJT solar panel 700W Back Contact solar panel 450W Back Contact solar panel 625W PERC solar panel 660W | 6 pieces |

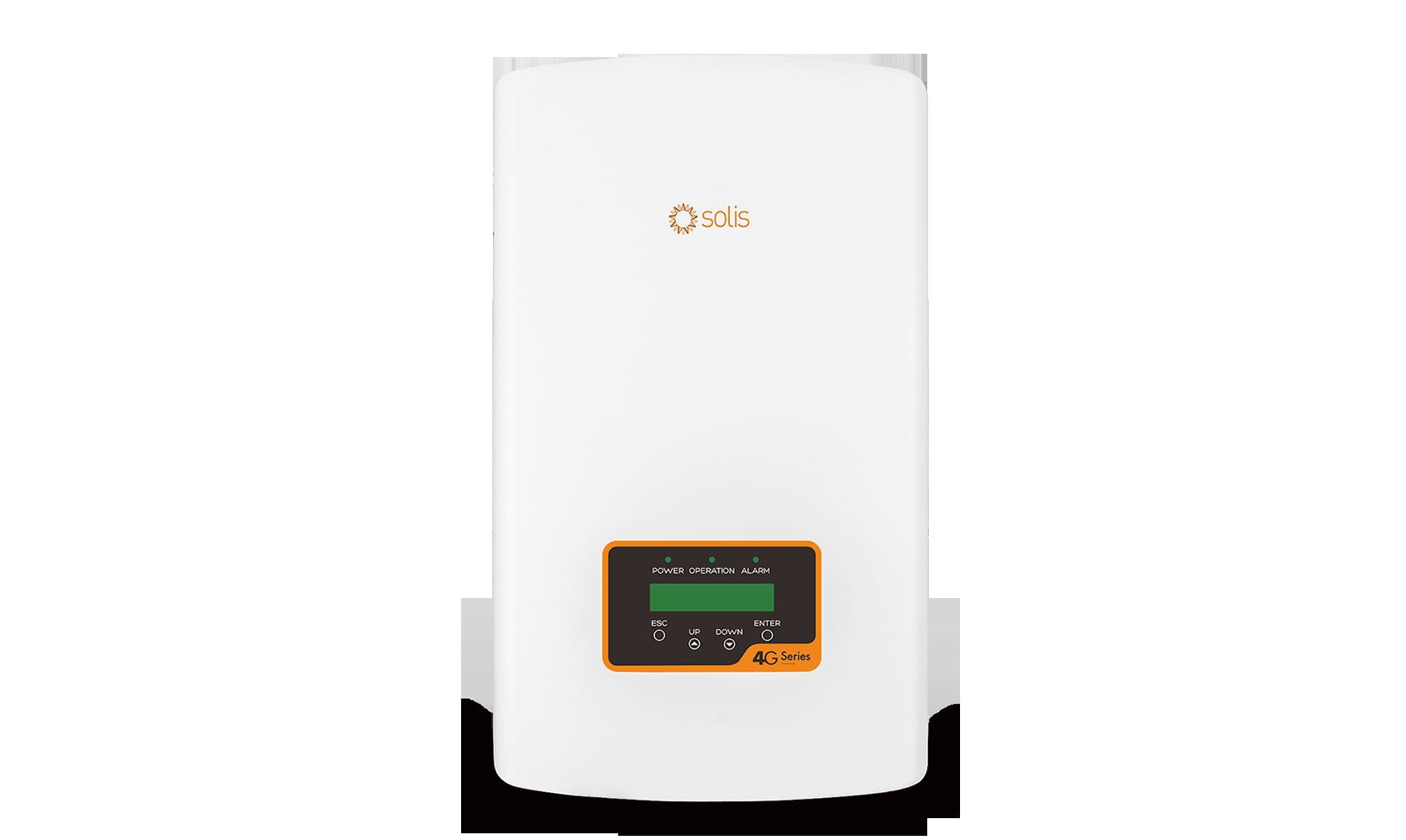

2 | 3kw grid tied inverter | AC 220v-240v, 50/60hz | 1 piece |
3 | Monitoring System | Wifi | 1 pieces |
4 | Mounting Support | Pitched / flat roof, ground | 1 set |
5 | Cable | Single-core 4mm2 and 10mm2 PV cable | 100 meters |
6 | Connector | MC4 connector | 2 pairs |
7 | Tools Bag | 5 kinds of PV installation tools | 1 bag |
【Components photos】
【Key Features】
Reliable and high efficiency
Quick install and easy maintenance
Safety and aesthetic
【Maintenance】
Monthly cleaning of solar panel surface to remove the dust is recommended. The dust on solar panel surface can reduce power output 5%-15%.
