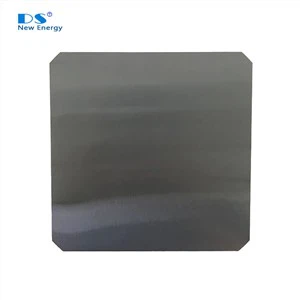

P Type M10 Monocrystalline Solar Wafer

P Type M10 Monocrystalline Solar Wafer
Product Introduction:
M10 with dimension of 182mmx182mm monocrystalline silicon solar wafer with diameter of 247mm can make higher power solar cells.
Send Inquiry
Chat Now
Description
Technical Parameters


158.75mm Full Square Monocrystalline Solar Wafer 2


P type monocrystalline wafer 1


P type monocrystalline wafer 2


210mmx210mm M12 monocrystalline silicon solar wafer with diameter of 295mm is 80.5% bigger than M2 wafer.


1      Material properties



Property

Specification

Inspection   Method

Growth   method

CZ


Crystallinity

Monocrystalline



Preferential   Etch TechniquesASTM   F47-88

Conductivity   type

P-type

Napson   EC-80TPN

P/N

Dopant



Boron, Gallium



-

Oxygen  concentration[Oi]

≦8E+17   at/cm3

FTIR (ASTM   F121-83)

Carbon  concentration[Cs]

5E+16   at/cm3

FTIR (ASTM   F123-91)

Etch pit   density(dislocation density)

500 cm-3

Preferential   Etch TechniquesASTM   F47-88

Surface   orientation

<100>±3°

X-ray   Diffraction Method (ASTM F26-1987)

Orientation   of pseudo square sides

<010>,<001>±3°

X-ray   Diffraction Method (ASTM F26-1987)



2      Electrical properties



Property

Specification

Inspection   Method

Resistivity

0.5-1.5 Ωcm

Wafer inspection system

MCLT (minority carrier lifetime)

50 μs

Sinton BCT-400

(with injection level: 1E15 cm-3)



3      Geometry



Property

Specification

Inspection     Method

Geometry

Full   square


Wafer Side length

182±0.25 mm

wafer inspection system

Wafer Diameter

φ247±0.25 mm

wafer inspection system

Angle between adjacent sides

90° ± 0.2°

wafer inspection system

Thickness

180  20/10 µm;

170 20/10 µm

wafer inspection system

TTV (Total thickness variation)

 27 µm

wafer inspection system







4      Surface properties



Property

Specification

Inspection     Method

Cutting method

DW

--

Surface    quality

as cut   and cleaned, no visible contamination, (oil or grease, finger prints, soap   stains, slurry stains, epoxy/glue stains are not allowed)

wafer   inspection system

Saw marks / steps

≤ 15µm

wafer   inspection system

Bow

≤ 40 µm

wafer   inspection system

Warp

≤ 40   µm

wafer   inspection system

Chip

depth   ≤0.3mm and length ≤ 0.5mm  Max 2/pcs;   no V-chip

Naked eyes or wafer inspection system

Micro cracks / holes

Not   allowed

wafer   inspection system
