On Grid Inverter 15KTL-M / 20KTL-M

On Grid Inverter 15KTL-M / 20KTL-M
On Grid Inverter 15KTL-M / 20KTL-M have new and advanced features: Friendly grid support function, including Integrated Plant Control, allows the inverter to regulate active and reactive power control and power ramp rate control at the grid-connection point. Other innovations are such as led bluetooth + app/RS485(optional:WIFI / Ethernet) and smart forced air cooling. The two MPP inputs of the 15KTL-M / 20KTL-M string inverters combined with a broad input voltage range 200-1000VDC and does it for almost all solar module configurations. The safety design, with string current monitoring function, electronic string fuse and integrated overvoltage protection DC type II and AC type II,ensures maximum solar power system reliable operation.
Product Details

Product description

On Grid  Inverter 15KTL-M / 20KTL-M have new and advanced features:

Friendly grid support function, including Integrated Plant Control, allows the inverter to regulate active and reactive power control and power ramp rate control at the grid-connection point. Other innovations are such as led bluetooth + app/RS485(optional:WIFI / Ethernet) and smart forced air cooling.

The two MPP inputs of the 15KTL-M / 20KTL-M string inverters combined with a broad input voltage range 200-1000VDC and does it for almost all solar module configurations. The safety design, with string current monitoring function, electronic string fuse and integrated overvoltage protection DC type II and AC type II,ensures maximum solar power system reliable operation.


Sales Area

Asia Pacific EMEA South America


High Yield

Max. efficiency 98.6 %, European efficiency 98.3 %

1.1 overload capacity, 10% more yield under high irradiance

Adapt to complex power grid, extend the grid-connected generation time

Patented PID recovery function optional


Easy O&M

24kg, easy O&M

Plug and play design, easy installation

String current monitoring function for fast trouble shooting

Fast commissioning, easy local and on-line monitoring


Safe and Reliable

High power quality, no interference for electrical equipment

Low radiation, compliance with household equipment standards

High anti-corrosion with aluminum alloy die casting

Built-in surge arresters and residual current protection

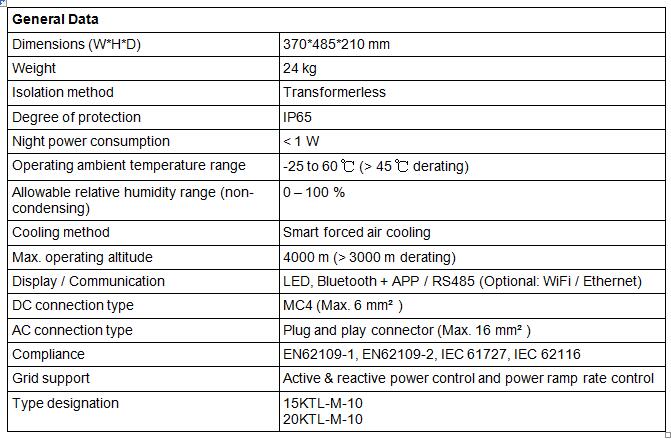

Technical Data


certification -1.jpg
