On Grid Inverter 49K5J

On Grid Inverter 49K5J
On grid inverter 49K5J is designed for Japan to convert direct current from solar panels mounted on rooftop or ground to alternative current. 4 MPPT design makes 49K5J on grid string inverters offer a greater degree of flexibility in certain situations. With several power levels available to match single or parallel strings of common PV modules, DC wiring is often simplified by avoiding the need for large array combiner boxes. The 49K5J inverters is capable of operating at 374-506 VAC and comes standard with AC and DC disconnects, transformerless isolation,smart forced air cooling, LCD display, and monitoring gateway.Additional features of the 49K5J is easy installment and convenient maintenance which is good for construction and operating.
Product Details

Product description

On grid inverter 49K5J is designed for Japan to convert direct current from solar panels mounted on rooftop or ground to alternative current.

4 MPPT design makes 49K5J on grid string inverters offer a greater degree of flexibility in certain situations. With several power levels available to match single or parallel strings of common PV modules, DC wiring is often simplified by avoiding the need for large array combiner boxes. The 49K5J inverters is capable of operating at 374-506 VAC and comes standard with AC and DC disconnects, transformerless isolation,smart forced air cooling, LCD display, and monitoring gateway.Additional features of the 49K5J is easy installment and convenient maintenance which is good for construction and operating.


Sales Area

Japan


High Yield

Max. efficiency 98.9 % European efficiency 98.5 %

Full power operation without derating at 50

Up to 4 MPP trackers


Easy O&M

Integrated IV curve scan function for fast trouble shooting

Plug-in design of fan and SPD, easy for on-site maintenance


Saved Investment

Max. DC/AC ratio up to 1.5

Capacity less than 50 kW plant only need one inverter

Can be installed horizontally, saving installation cost


Grid Support

Compliance with Japan utility grid standards

Fault ride through (FRT) 2017

Remote active power control

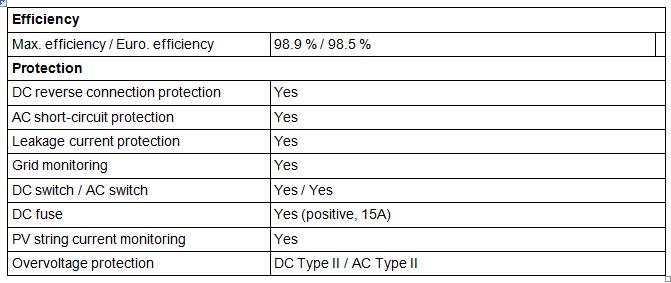

Technical Data
